■ Manufacturing Pictures:

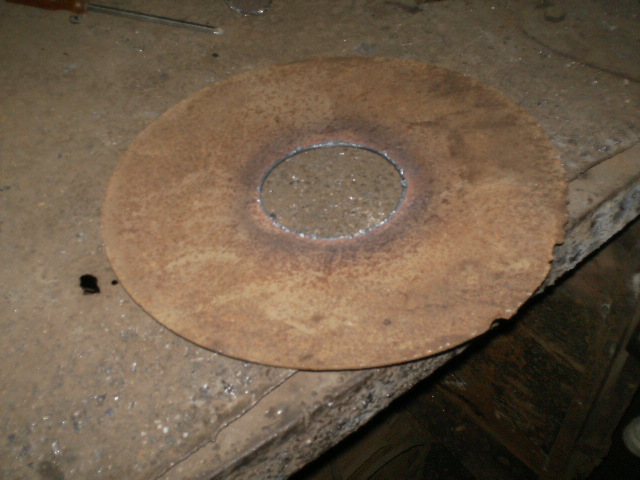

Lower cover Upper cover

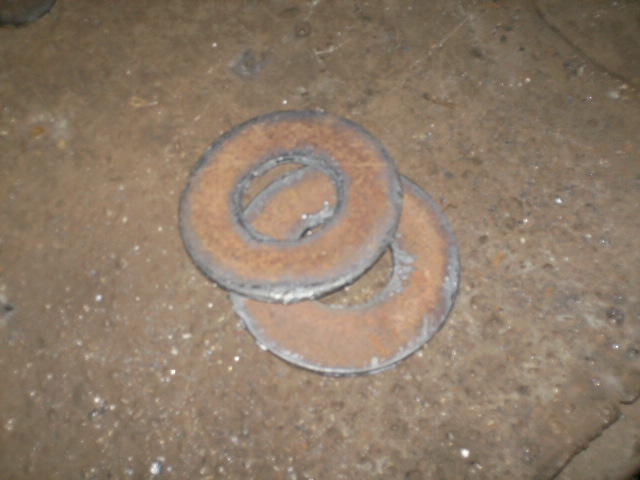

Rings Flame holder & starter place

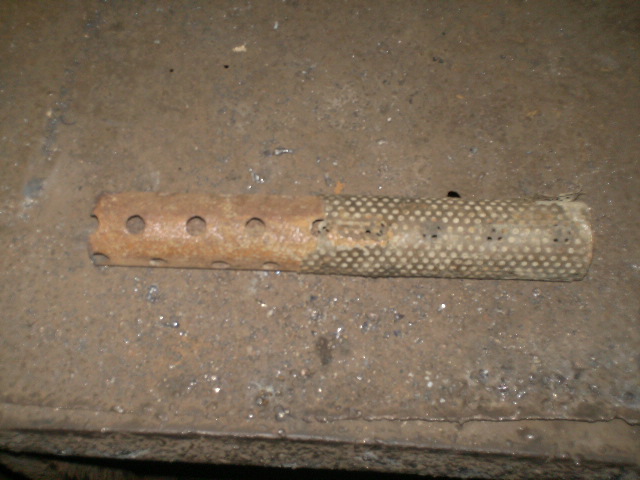

Gases path

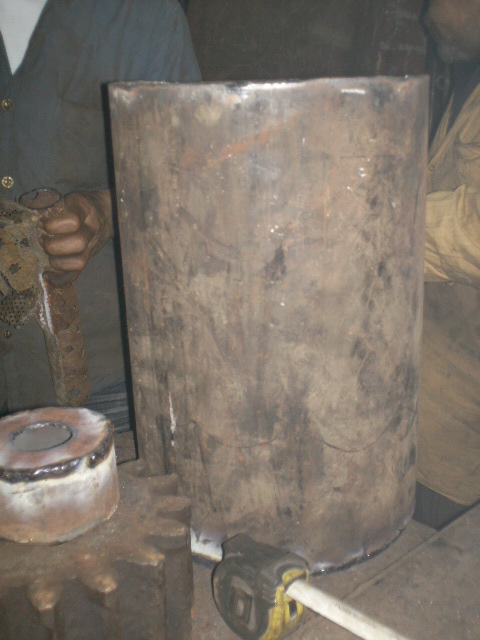

External cylinder
Ring welded with flame holder Ring welded starter place
Gases path welded with Ring & flame holder
External cylinder welded with lower cover Part 1, 2 & 3 welded together
Then putting the upper cover and you have a complete Biomass burner
Complete Biomass Burner
Starting: Put your biomass solid fuel inside the burner and burn a little amount of solid biomass under the starting place to heat the burner, when it is heated enough the inside biomass fuel will be burned and the flame will appear from the burner top then you can use it now for cooking or water heating or house warming. |
|
| |
Build your own Biomass burner -
Page 2/2
