THE MAUMEE - PERRYSBURG BRIDGE

A PICTORIAL HISTORY

Construction November 1 through 15, 2001.............

Click on the thumbnail pictures to view a larger image

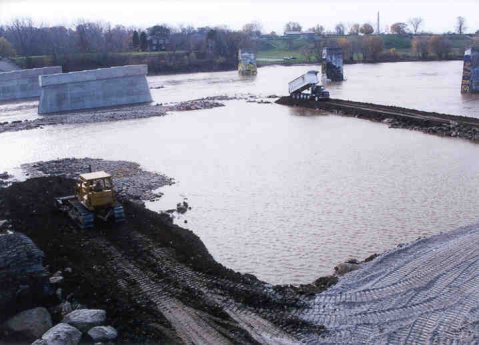

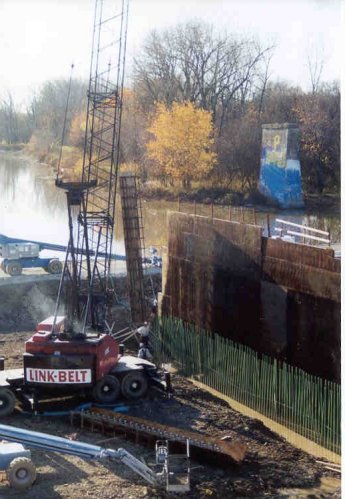

North cofferdam reconstruction

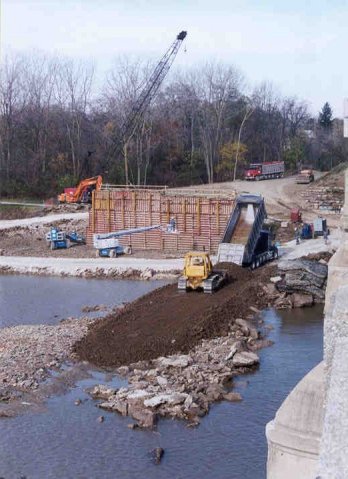

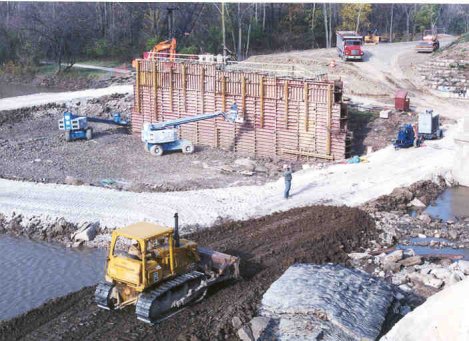

Cofferdam material delivery

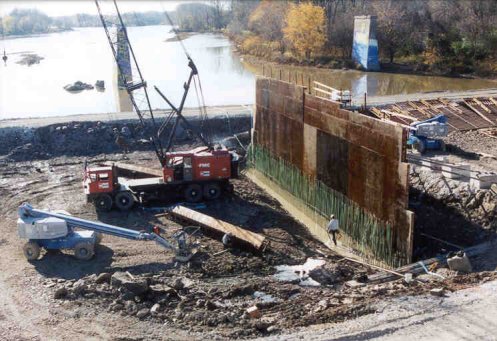

Piers #1 cofferdam rebuilt

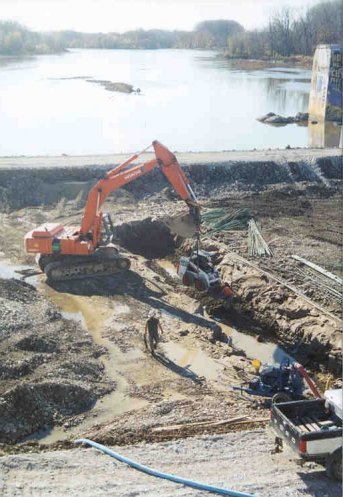

Piers #1 construction resumes

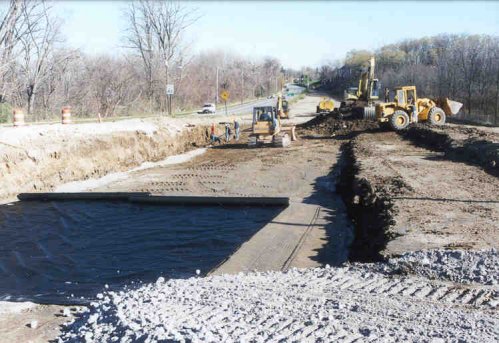

Roadwork - Perrysburg approach

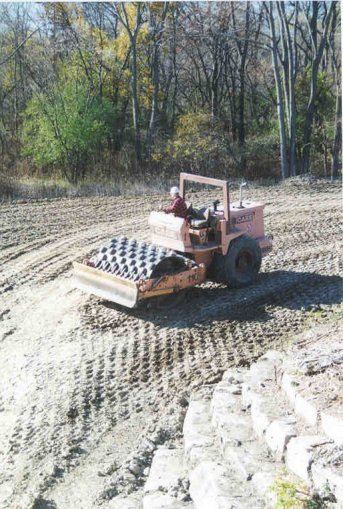

Earth Compaction - Maumee Side

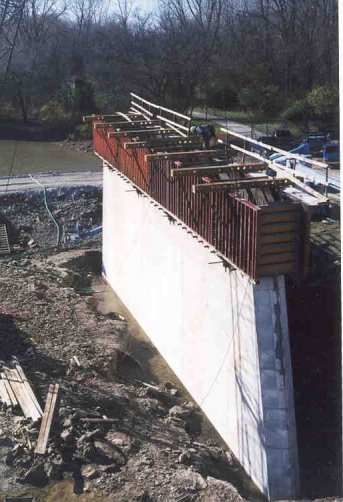

Pier #1 cap formwork

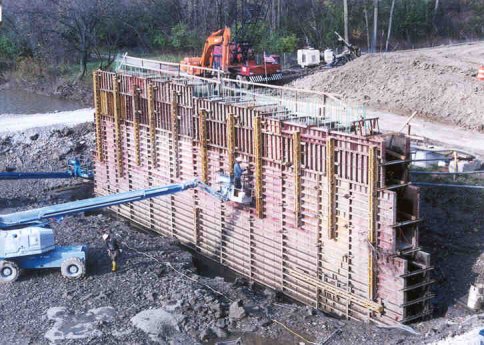

Erecting Pier #2 formwork / rebar

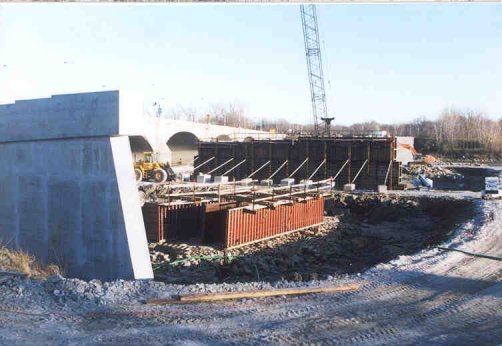

Pier #1 complete - Pier #2 formwork




Setting Pier #2 nosing

Pier #3 foundation excavation

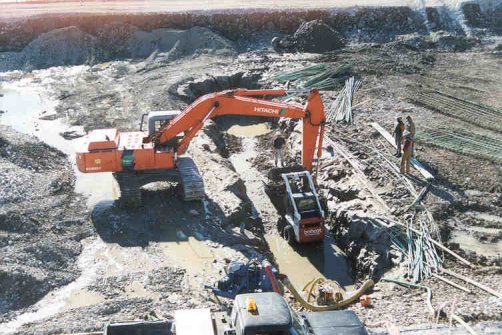

Removal of rock fines - Pier #3
