Derivation of Object, Sequence and Collaboration Diagrams

From the table of Confirmed list of Objects and Classes, we derived the Preliminary Object Diagram:

   Preliminary Object Diagram

After further analysis, we derived the Final Object Diagram:

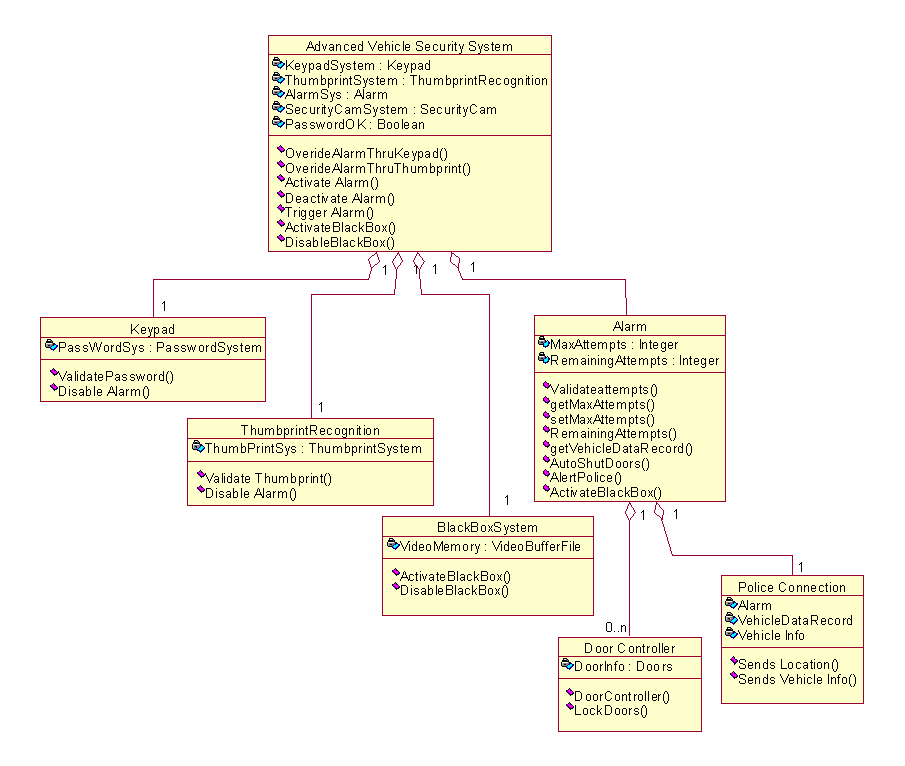

            Final Object Diagram

 The corresponding Preliminary and UML Sequence diagrams are as follows:

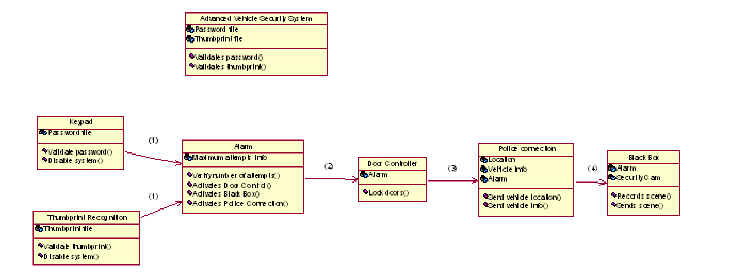

                                        Preliminary Sequence Diagram

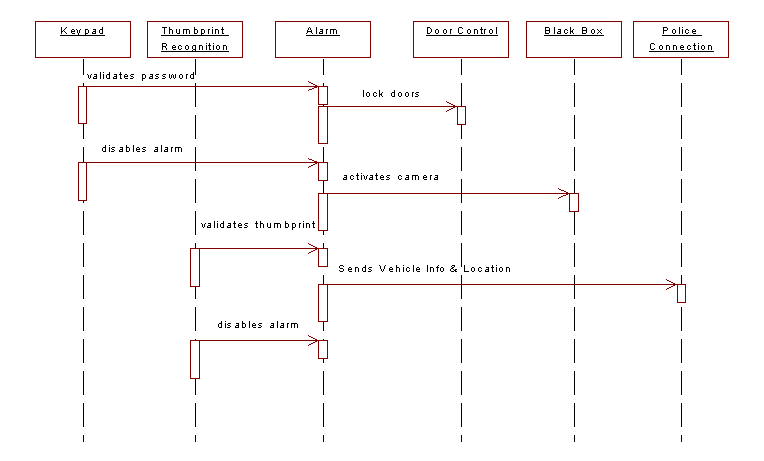

                                        UML Notation Sequence Diagram

Finally we present the Collaboration Diagram:

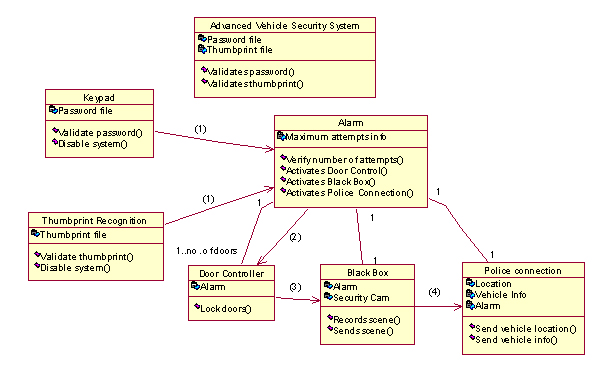

                                Collaboration Diagram
