The NetMap is a free alternate portable GUI frontend for Dynamips with hypervisor.
Dynamips is a Amazing Cisco router emulator written by Christophe Fillot

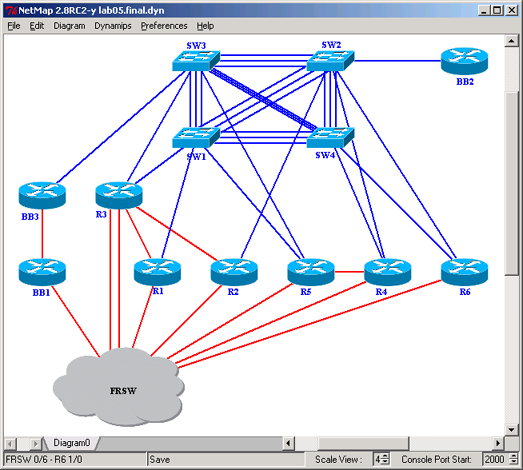

Scale View


NetMap need Dynamips 0.2.8-RC2 release to work.

Latest version 2.8RC2-y (2009-03-02)
- Support 8 levels scale view
- Support pan with hold the middle mouse button
- Change netio udp port.
- Simple Terminal support use of Up/Down arrow key for calling history.
- Support Telnet compatible program (with syntax: binary ip port)
- Support manual start/stop ethsw/frsw/atmsw
- Split bar between info diagram & simulation status

Download folder in 4shared
This version need img.kit file in the same folder.

Tclkit platform should be run, in other platform too, but only tested on windows.
Download runtime for kit, at :
http://www.equi4.com/pub/tk/downloads.html
Put this kit file in the same folder.
img.kit

Try using ghost & sparse with ramdrive.
Here's a free one.
Gavotte RAMdrive

The IE lab07 - Vol II Ver 4.1 with final configuration took nearly 85% of Centrino 1.73G, but everything stable although using only 1 hypervisor.

If you interested to compare lab07 CPU in your pc.
This one for NetMap and, after not using frsw ios emulation (CPU around 75%) and here for Dynagen/GNS3.

It's an export version of my lab, with final configuration. It can be re-imported too.
Inside SW1-4 configuration, there is a simple trick to keep the vlan configuration attach. (w/ EEM)
But you, need ios version that support vlan database as cli command.

Import Configuration are fastway to understand topology from collected capture configs. (each file need to be single node)


History:
2.8RC2-x (2009-02-27)
- Fix duplicate mac-address cause reuse instanceid
- Enable menu for choosing binary in windows & unix (dynamips & unzip)
- Binary define in .ini files.
- Remove Enable pcap menu (pcap required)
- Testing linux port to run sample simulation
- Fix fail import from dynagen/GNS3 cause missing bracket

2.8RC2-w (2009-02-24)
- Fix FRSW vc creation
- Changed Ethsw nio to udp
- Disable import ram value from dynagen/GNS3 topology files.
- Fix kit and linux binary with extension
- Attach the sample.dyn (sw device are based on dynamips syntax)
- Disable some unused menus

2.8RC2-v (2009-02-19)
- Import Capture Configuration support auto link topology for p2p with subnet mask 24 - 30
- SaveAs .net compatible with Dynagen and GNS3 in windows and 'nix

2.8RC2-u (2009-02-16)
-Correct some missing code, effect on cpu usage

2.8RC2-t (2009-02-15)
-Fix crashing dynamips for frsw with multiple dlci, run iewb without frsw ios emulation.
-Update Usage for dynagen installed
-Move default console and aux port

2.8RC2-s (2009-02-14)
-Repair NetMap code on export-import with Dynagen/GNS3.
-Import/export the topology, the startup-configuration also exported.
-Fix detected corrupt code in import configuration from directory

2.8RC2-r
Import/export found not working, seems from 2.8RC2-k

http://rapidshare.com/files/180836453/netmap-v2.8RC2-q.rar
File-Size: 1.05 MB
md5: ab618e6821bb37e03d7ba0fc2566b5dc

http://rapidshare.com/files/180836943/netmap-v2.8RC2-q.kit
File-Size: 0.16 MB
md5: d27a4a12a1e51e1316438454c06ceaa7


2.8RC2-q
- Fixing Reconnect Hypervisor
- Wrap by tclkit, prepare for multiplatform
- Simple Terminal support ctrl for Control-Shft-6, Control-P, etc.
- No longer include binary, (Hypervisor and Unzip IOS require old binary)

md5
exe: ab618e6821bb37e03d7ba0fc2566b5dc
kit: d27a4a12a1e51e1316438454c06ceaa7


2.8RC2-p
- Fixing dynagen import
- Fixing default for new
- Newer cygwin1.dll

md5 1bbe3ca8772ebeb572e8c2a785bf0936

2.8RC2-o
- Fixing hypervisor port dissapear
- Enable option disk0 & disk1
- Fixing message bad screen distance

md5 dee10a09b95ca8224715eb16928f1386

2.8RC2-n
- Enable verify & reconnect hypervisor after lossing socket
- Enable verify nio before nio crossconnect
- Enable verify resume after batch start
- Fixing nio deletion
- Enable deletion frsw, atmsw, atm_bridge, nio_bridge & ethsw (after stop batch)
- Enable link info on bottom bar
- Fixing combine start (single & batch)
- Enable Pseudo Name
- Enable Hidding Pseudo for hidden links
- Fixing Running Multihypervisor with Embedded Hypervisor (set Hypervisor Address)
- Tested Running sample with Multihypervisor
- Tested Internetwork Expert sample Topologies
- Enable menu start/stop frsw & atmsw (for applying updated configuration)

2.8RC2-m
- Cleanup Embedded hypervisor start/stop code
- Enable menu for changed Embedded hypervisor priority


2.8RC2-l
- Remove suspend delay on batch start (Much Faster Now)
- Fixing enable/disable pcap
- Enable reset node hypervisor

md5 bc861c4825ee1452befbe715c1b298b4

2.8RC2-k
- Fixing import from dynagen when cnfg not found
- Fixing import from dynagen slot not process
- Fixing import from dynagen for pa-4t adapter
- Fixing import/export atmcfg
- Fixing duplicate export for parameter disk
- Fixing error on hypervisor list
- Enable hide links feature
- Enable pcap manual entry

md5 209db8e0c141fbf4ae2beadf13d698be

2.8RC2-j
- Fixing gigabit not detected when the only ethernet
- Put new node on static coordinates
- Enable veriy ios on batch start
- Enable Double right click for menu
- Enable set multiple selection for ios, ram, hypervisor & symbol
- Fixing multiple select on deletetion
- Fixing missing parameter lastX lastY
- Fixing Double click requesting ios on Non instance
- Fixing simple terminal not close after instance stop
- Releasing CPU while waiting response from hypervisor
- Inform Embedded hypervisor connection state on bottombar
- Updating Usage

url rapidshare.com/files/68441628/netmap-v2.8RC2-j.exe
md5 1e6b5a0d2f277f25b9730de84653bccd

2.8RC2-i
- Fixing import dynagen map (tested with sample topologies from internetwork expert)
- Fixing reset hypervisor

url rapidshare.com/files/68015284/netmap-v2.8RC2-i.exe
md5 a5f9e63c400a1dce497fd40220a75c4e

2.8RC2-h
- Enable pick available spare interface while create link
- Use netio for connecting to null only or reseting interface back to fifo
- Fixing paste menu on editing config
- Enable simple-terminal for serial (ssh still not supported)
- Enable Capture running-config for other nodes
- Enable "Connect to" menu in simple terminal
- Fixing Read capture config to read between "!" and "end"

url rapidshare.com/files/67626012/netmap-v2.8RC2-h.exe
md5 5d67ec2f046018664715d830b1bc595d

2.8RC2-g
- Reenable changing netio for mapping interface
- Enable Draw new links for documentation
- Fixing Export startup-config for documentation
- Enable Capture running-config (only when using simple terminal as a telnet)
- Enable menu for Change base console port

2.8RC2-f
- Import Capture Config & P2P Topology

url rapidshare.com/files/65976900/netmap-v2.8RC2-f.exe
md5 c7ac5d335dbc9390f54313a216429082

2.8RC2-e
- Enable support for atm_bridge (still not working)
- Fixing all links remove after changing wic
- Insert FAQ
- Fixing based interfaces not copied on duplicate menu other than c7200
- Enable split link menu on diagram only
- Enable slot 6 support for c3660
- Enable support for c1710
- Enable Network Diagram for documentation function
- Better multilink support
- Enable external icons support in subdirectory icons
- Found import wic from dynagen still failed

2.8RC2-d
- Enable support for atmsw, ethsw, frsw & bridge
- Import additional dynagen paramter (cnfg, atmsw, ethsw, frsw & LAN)
- Add Sample topology for atmsw, ethsw, frsw, rj45 & bridge
- Supporting dynagen saveas with split link and multiple diagram
- Diagram only supporting dynagen default console port (2000)

url rapidshare.com/files/63561323/netmap-v2.8RC2-d.exe
md5 78cc4b5aed4cb4d77ac4d823226dd0d6

2.8RC2-c
- Fixing Dynagen saveas and supporting sparsemem & ghostios

2.8RC2-b
- Building all ghostram before start by diagram
- Fixing Dynagen saveas

url rapidshare.com/files/63344827/netmap-v2.8RC2-b.exe
md5 98f5d6cd25086c6ae2555436ba6fd2da

2.8RC2-a
- Embedding RC2 version
- Fifo seems stable (Reenabled for intravisor links)

url rapidshare.com/files/63096097/netmap-v2.8RC2-a.exe
md5 7611d5dd62478f275b05a544d81a697d

2.8c-2
- Fixing cannot save (oops, sorry)

2.8c-1
- Fixing menu for Hypervisor & Diagram Only
- Option ios for changing ios folder

2.8c
- Import Dynagen Topology (ethsw, frsw, & bridge. for atmsw status diagram only)
- Remove GNS import Topology (GNS changed to dynagen GUI)
- Supporting (securecrt, putty & ttssh)
- Fixing uncompleted capture config
- Moving menu diagram hypervisor + adding batching by diagram
- Adding option Diagram Only (set hypervisor address for accessing the console by double-click)
- Enable sparse and ghost as an option (previous was always enabled)

2.8b
- Adding right click menu on Terminal Console (copy & paste, resizing font)
- Fixing high cpu cause Console without active node simulation
- Fixing hypervisor connect / disconnect
- Fixing default console port
- Fixing Netio udp port for connecting nodes with different hypervisor
- Close Embedded hypervisor if stop instances on exit enabled
- Adding menu only (for importing dynagen and GNS diagram)
- Adding menu help (Usage, notes & about)
- Fixing "Remove other IdlePC"

2.8a
- Fixing ghostram creation for:
c3745, c3725, c3660, c3640, c3620, c2691, c2651xm, c2650xm, c2621xm, c2621, c2620xm, c2620, c2611xm, c2611, c2610xm, c2610, c1760, c1751, c1750, c1721, c1720
- Capture idlepc & Removal except being used
- Fixing unzip Tools
- Menu for using pcap version

2.8
- Supporting dynamips 2.8RC1 (Many changes, won't commpatible with older version)
- Base64 offline / reviewing
- Multi hypervisor now
- Simple console (replacing telnet)
