Skip next instruct. if [AR] > Q - By Alvin Pon

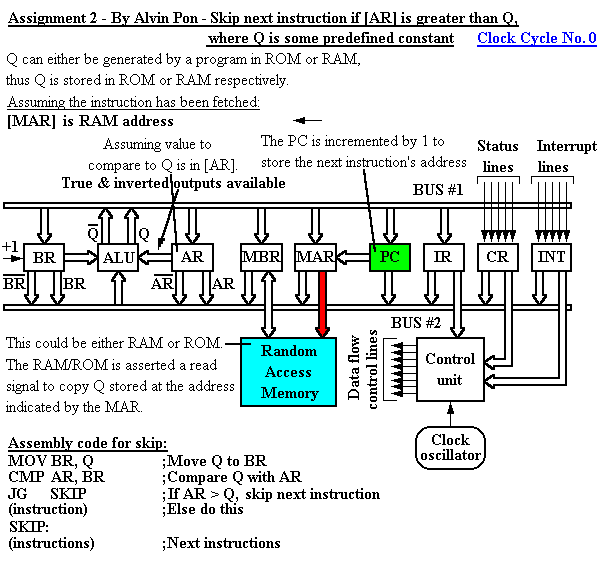

Skip next instruct. if [AR] > Q - By Alvin Pon - Clock Cycle No.0 Register-bus organisation of a simple computer performing Skip next instruction if [AR] > Q, where Q is some predefined constant, Clock Cycle 0

Register-bus organisation of a simple computer performing Skip next instruction if [AR] > Q, where Q is some predefined constant, Clock Cycle 0

Next clock cycle (Clock Cycle No. 1) -->
