Taylor (1936 / 1976) |
List of Bells - original treble bells, currently out of use
List of Bells - bells for 5th octave, never installed

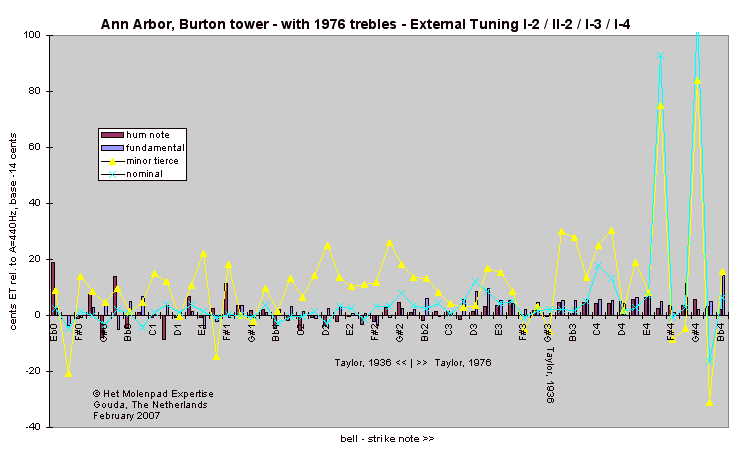

graph 1A
current instrument, with treble bells from 1976
external tuning hum note, fundamental, minor tierce and nominal
partials
(equal temperament, base -15 cents if A1=440 Hz, air temperature
0. C)

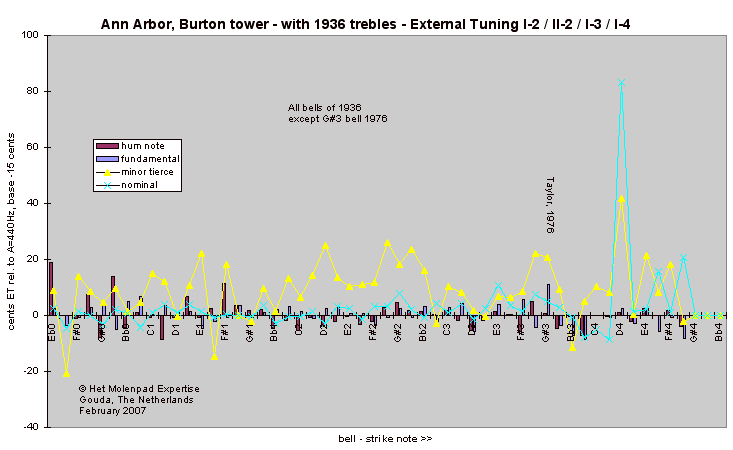

graph 1B
Same as 1A, but with the original set of treble bells of 1936

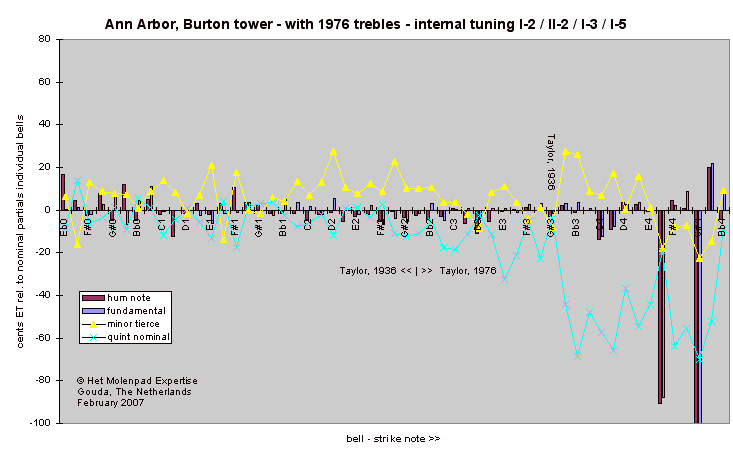

graph 2A
current instrument, with treble bells from 1976
internal tuning hum, fundamental, minor tierce and quint-nominal
(related as equal tempered intervals to the nominal partials of
the individual bells)
graph 2B
Same as 2A, but with the original set of treble bells of 1936

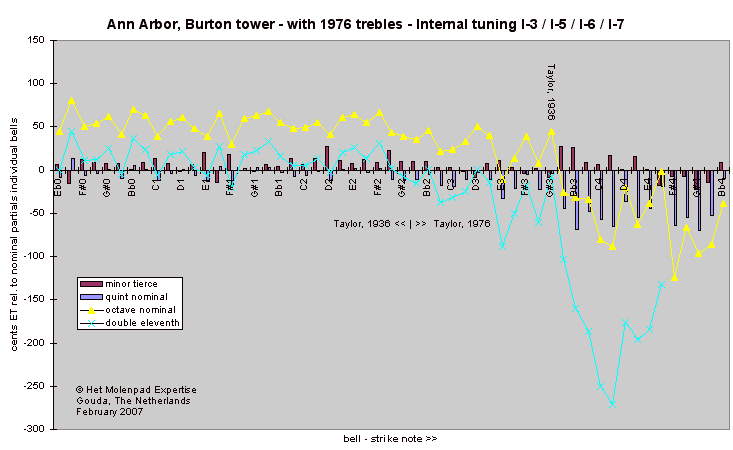

graph 3A
current instrument, with treble bells from 1976
internal tuning minor tierce, quint-nominal, octave-nominal and
double fourth
(related as equal tempered intervals to the nominal partials of
the individual bells)
graph 3B
Same as 3A, but with the original set of treble bells of 1936
graph 4A
current instrument, with treble bells from 1976
internal tuning quint-nominal, octave-nominal, double fourth and
major triple-sixth
(related as equal tempered intervals to the nominal partials of
the individual bells)
graph 4B
Same as 4A, but with the original set of treble bells of 1936

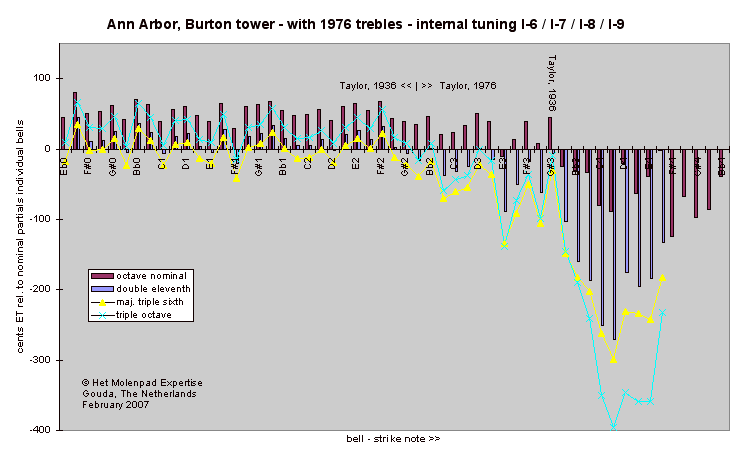

graph 5A
current instrument, with treble bells from 1976
internal tuning octave-nominal, double fourth, major triple-sixth
and triple octave
(related as equal tempered intervals to the nominal partials of
the individual bells)
graph 5B
Same as 5A, but with the original set of treble bells of 1936
