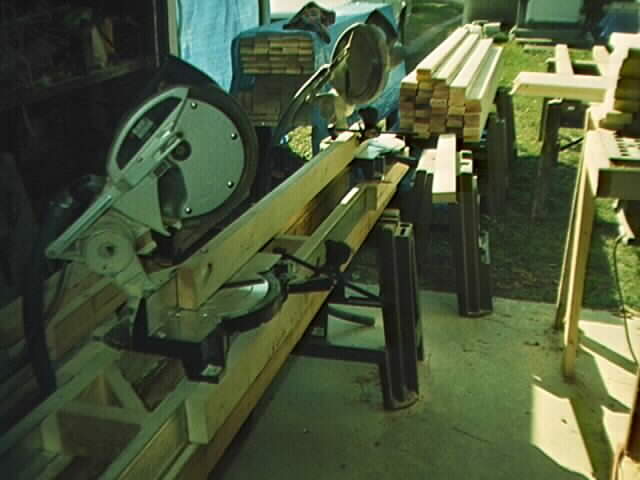

The follow photo is of a cutting jig, comprised of two power miter saws bolted two 2 x 4 runners which track along a 2 x 4 rail. Full fabrication of basic truss takes about 24 man-hours for trained worker.

• Link to Larry Keegan's miter saw layout

________________________________________________________

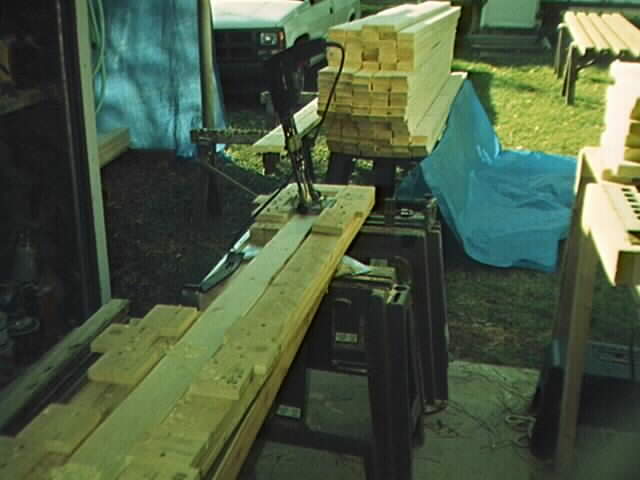

The following photo shows the connecting members being drilled via the use of a drilling jig.

_______________________________________________________

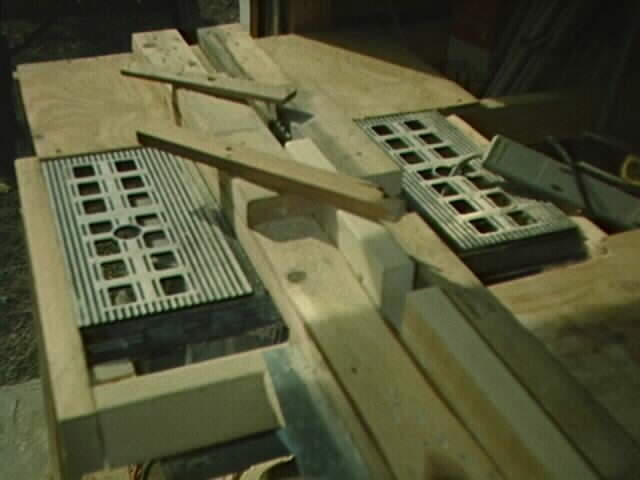

The following photo shows the scrap lumber being run through a tilted
table saw blade to produce the connecting wedge pieces.

________________________________________________________

The following JPG shows the panels being nailed up using a jig panel as a pattern.

________________________________________________________

The following photo shows the sheathing being cut with use of a pattern.
