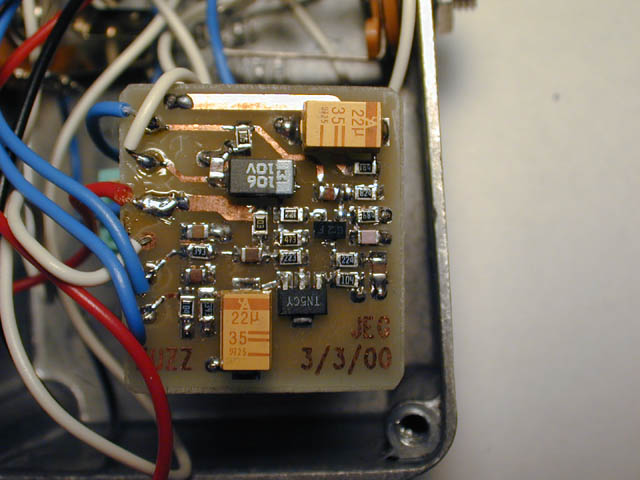

| Here is a view of the assembled board |  |

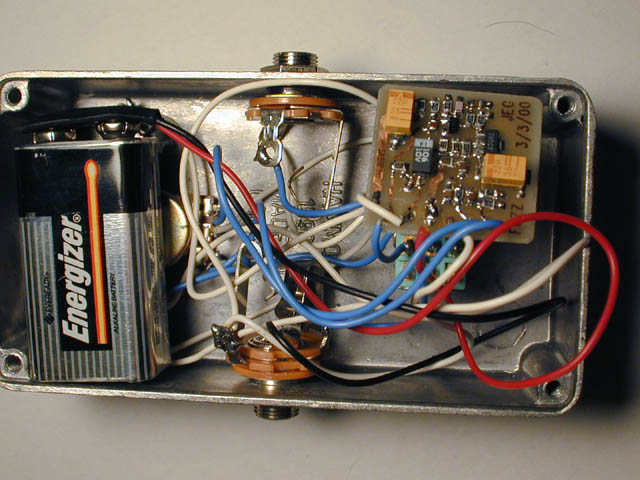

| This is the inside of the case |  |
| This is the top. |  |
This
is a version of the Axis Fuzz I tried. It uses a MOSFET for the second
transistor instead of the original 2N3904. I also added a BMP style tone
control on the output. The schematic and artwork are available below. The
artwork is for surface mount components, however.
| Here is a view of the assembled board | |
| This is the inside of the case | |
| This is the top. | |
| Schematic | FUZZ.PDF |
| PCB Artwork Top | TOP.PDF |
| PCB Artwork Bottom | BOT.PDF |
| PCB Silkscreen | SS.PDF |
