Installing Windas and Required Libraries

Return to Index

1. Download windas.exe from http://www.ablserv.com/files/windas/WDAS/
   The file you see at /files/windas/windas.exe is incomplete and won't work.
   You may also want to download windas_usr.exe for the manual in .doc format.

2. Run windas.exe to extract 3 files, installer.exe, unlha32.dll and install.lzh.

   You can now run the installer.exe to extract windas to any folder.
   Problem: Using the 'Folder' button does not work! You must type in the folder name manually. The installer will complain about not finding files that are present if this is not done. (Thanks to Dorian for this fix)

   You should now have the contents extracted at that location.


3. Windas now requires external libraries which are used to controll several
   different signal generators. .dll (dynamicly linked library) files are linked
   to the process memory image at runtime. The program will refuse to run without
   them despite us not needing any of the functions they contain (I assume you
   don't have any of the supported video signal generators).

   These dll files can be obtained from http://www.ablserv.com/files/windas/ under
   the directory for the respective signal generator.


   The .dll file TRANSDLL.dll is only available from the Astro SG installer.

   Download /files/windas/Astro/astro.exe , which will extract the Astro SG installer.


   Run the extracted set up program and be sure to refer to disk2.
   TransDll.dll RegDll.dll and LimitDll.dll will be installed in C:\windows\system\
   directory. Find and copy them to your windas directory so you can uninstall
   Astro SG.

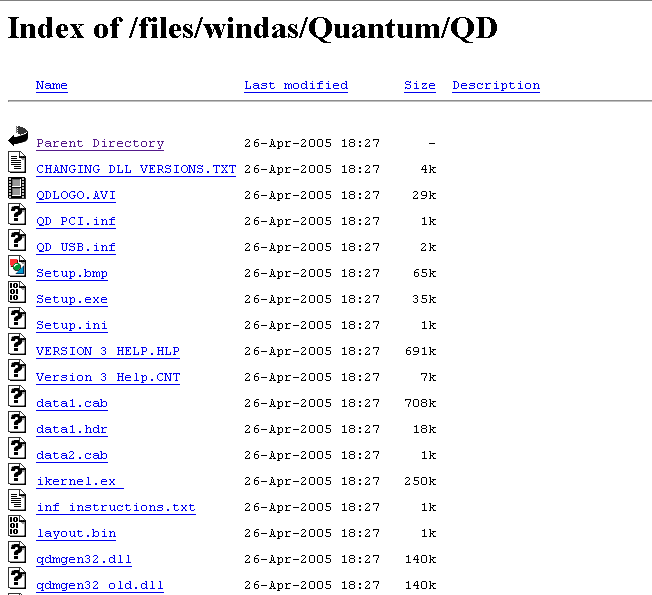

   You will be asked about a qdmgen32.dll which can be obtained as shown.

   You should now have all .dlls shown below and windas should run.

   Try to click 'Set up'->'Model Sel', if you are done if you get the screen below.

   If not, download activex.exe as shown below

   Copy activex.exe into a blank folder and extract contents.

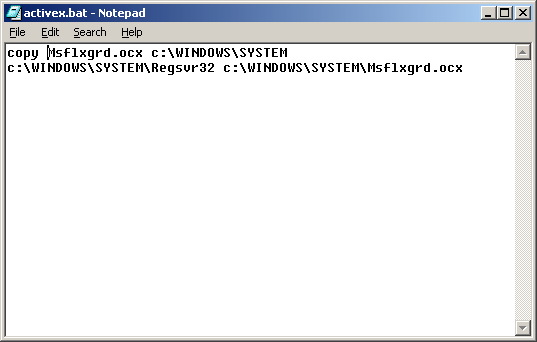

   Right click activex.bat ->edit, make the change indicated below.
   Problem! This is not generic Enough for Windows XP!
   Instead make the file read:
   copy msflxgrd.ocx %systemroot%\system32
   regsvr32 %systemroot%\system32\msflxgrd.ocx
   Do this manually if you have to, if you can't open 'Set up'->'Model Sel', you are missing this step!

   Now double-click activex.bat, you should see the following.

   Run windas again and you should get the following from 'set up'->'Model sel'.

   Now windas has all libraries it needs to function properly, if you are still
   missing something you should decide if it is an MS library, or a signal
   generator library. Search for signal generator libraries on
   ablserv.com/files/windas/, search for MS libraries on google.
   Post on ShortMedia thread for help

4. Windas will not be very usefull without the hardware device

   Just about everything you try will advise you to "Check configuration."
   Download my WindasPatch.zip and extract to
   where you installed windas.

   Double-click the patchDas.bat file, you should get the message below.

   Now run 'Set up'->Config and you should see the following.

   Congratulations! You have successfully installed and patched Windas! With your Ecs cable windas will be fully functional! Make sure to back up your current monitor config before doing anything else.
