Contours

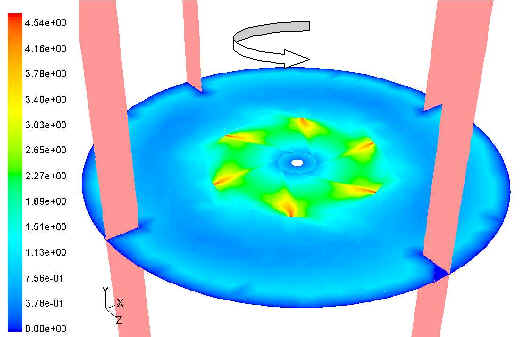

the picture above shows velocity magnitude contour of impeller outflow (impeller bottom) using Impeller Boundary Condition methods.

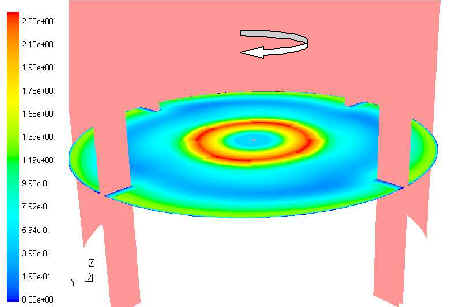

The picture shows velocity magnitude contours at the bottom impellers using Multiple Reference Frame method pumping down mode. Look out the differences between two method.

The same as above, but for pumping up mode and on upside impeller. It's nearly the same patterns as pumping down mode.
