| Standard | : DIN7980 (equivalent to BS4464 type A) |
| Material | : A4-316 stainless steel |

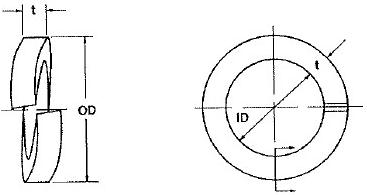

| Style | : Single coil square section |
|
Bolt Size |
OD (mm) |
ID (mm) |
t (mm) |
Weight (kg) in A4-316 per hundred |
|---|---|---|---|---|
M5 |
8.8 |
5.1 |
1.6 |
0.037 |
M6 |
9.9 |
6.1 |
1.6 |
0.043 |
M8 |
12.7 |
8.1 |
2.0 |
0.106 |
M10 |
16.0 |
10.2 |
2.5 |
0.198 |
M12 |
18.0 |
12.2 |
2.5 |
0.230 |
| M14 | 21.1 |
14.2 |
3.0 |
0.384 |
| M16 | 24.4 |
16.2 |
3.5 |
0.601 |
| M20 | 30.6 |
20.2 |
4.5 |
1.245 |
| M24 | 35.9 |
24.5 |
5.0 |
1.832 |
| M27 | 38.9 |
27.5 |
5.0 |
2.086 |
| M30 | 44.1 |
30.5 |
6.0 |
3.240 |
| M33 | 47.1 |
33.5 |
6.0 |
3.544 |
