| Standard | : DIN 975 |
| Material | : BS6105 Corrosion-resistant stainless steel grade A4 property class 80 |
| Identification | : Orange-colour painted at one rod end |
| Certificate | : Chemical and mechanical test certificate issued by Manufacturer |
|
|
| Tensile Strength | : 800 N/mm² (min) |
| Proof load stress | : 600 N/mm² (min) |

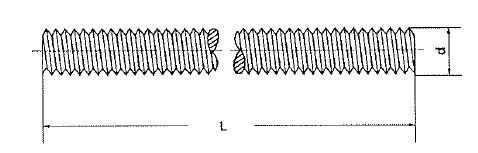

Thread size (d) |
M5 | M6 | M8 | M10 | M12 | M14 | M16 | M20 | M24 |
|---|---|---|---|---|---|---|---|---|---|
Thread pitch |
0.8 |
1 |
1.25 |
1.5 |
1.75 |
2 |
2 |
2.5 |
3 |
Length (L) |
|||||||||
1000mm |
0.124 |
0.177 |
0.319 |
0.500 |
0.725 |
0.970 |
1.330 |
2.080 |
3.000 |
3000mm |
0.372 |
0.531 |
0.957 |
1.500 |
2.175 |
2.910 |
2.910 |
6.240 |
9.000 |
 |
