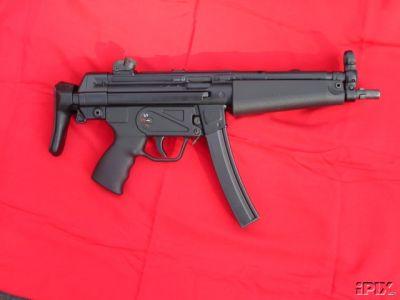

Heckler & Koch MP5 A3
Submachine Gun (SMG)

The MP5 Submachine gun, for 9mm x19 (Luger) ammunition, is an automatic small arm produced in accordance with the most advanced manufacturing methods. It permits either single shots or burst to be fired from all positions.

The submachine gun is recoil-operated, with stationary barrel and delayed roller locked bolt system.

Its high accuracy in single-fire mode results from the fact that the submachine gun fires from a close bolt, in conjunction with the recoil operated delayed roller locked bolt system.

This delayed roller locked bolt system also allows the weapon to be held easily when firing bursts.

The MP5 offers absolute safety because it fires from the closed bolt position.

The ammunition is fed from a 15- or 30-round magazine.



Specifications of MP5 A3

Rate of fire approx. 800 r.p.m.
Muzzle velocity-Vο- approx. 1312 f.p.s. (400m/sec)
Muzzle energy -Eο- 470ft.lb (650 J)
6 grooves with constant right hand twist Sighting shot 25 and 100 m
Maximum height of trajectory above the line of sight at a range of 50-60m 4.33 in (11cm)
Weights
Weight of weapon with retractable butt stock, without magazine 6.34lbs(2.88kg)
Steel magazine for 30 rounds, empty 6.0 oz (0.17kg)
Cartridge 185 gr (12g)
Lengths
Length of weapon with retractable butt stock 25.98 in (660mm)
Length of weapon with butt stock retracted 19.29 in (490mm)
Line of sight 13.39 in (340mm)
Barrel 8.85 in (225mm)
Cartridge case 0.74 in (19mm)

The theory of Close Quarter Combat (CQB) shooting with retractable butt stock MP5

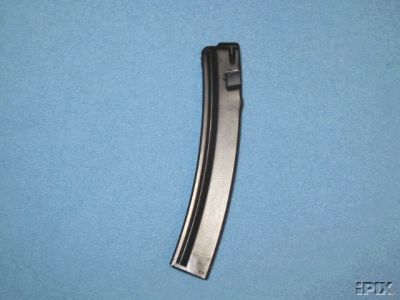

MP5 30 Rounds Magazine

Multi Purpose Sling

Brass Catcher





Mount for MP5

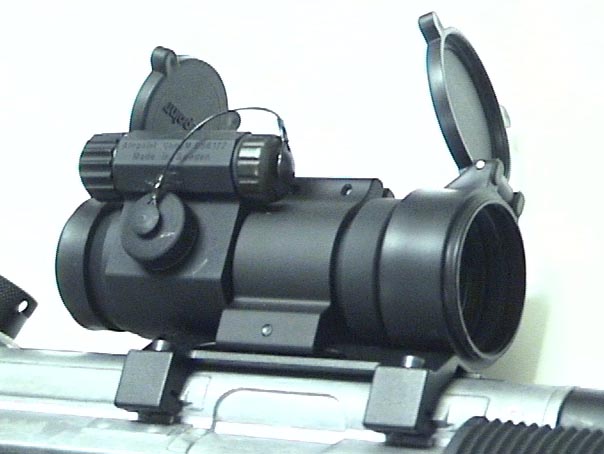

ML2 Red Dot Scope
