Magic-1 clone Page 2

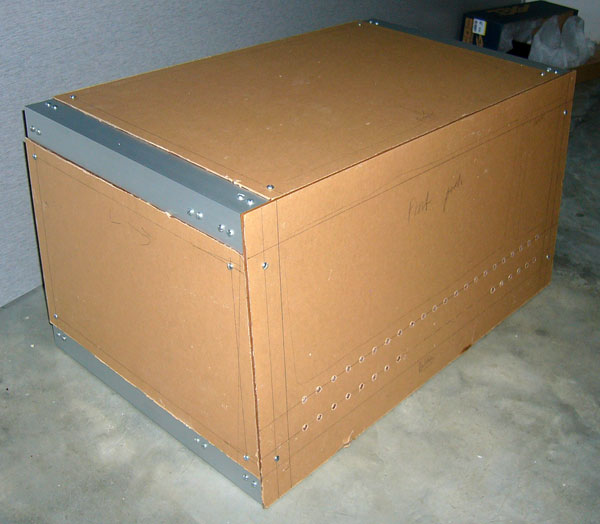

Plans on the enclosure started after the machine worked. At this stage I have already attained confidence on the machine operability. The enclosure frame was made from the same material as the card cage but it will be covered with acrylic. Some pictures of the construction.. Base of enclosure after assembly The card cage fitted inside the enclosure LED assembly for the front panel The case finished but not yet finalized
