Mark 1 FORTH Clone Page 2

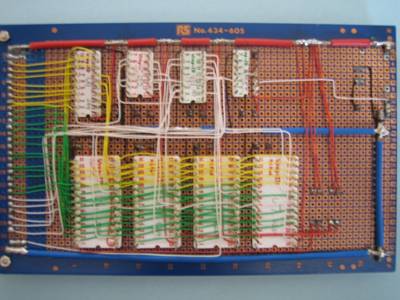

As previously mentioned, wire-wrapping was used to wire each system card. The following pictures show the bottom views of the wire-wrapped cards: System Clock & Instruction Decoder Microcode Sequencer IP Index Register Stacks Memory Arithmetic & Logic Unit Diode ROM Input/Output For an even closer view of wire-wrapping:
