Water and Sewer

The project was defined on 1999 by one of Water organizations in Iran (Client Server). The main reason was to save and register the accidents which may occur in water pipes, to manage the best solution and prevent and maintain it for further accidents. this application is also supported by GIS system to solve the network problems with AM/FM solution. The project has developed with Ms Visual Basic 6, Microsoft SQL Server 7, ESRI MapObjects 2.

Login Form , login to SQL Server Database, based on Username & Password.

Main Menu, introducing main jobs in application.

Accident detail information form & list of all accidents reported & the location of the active accident in map.

Here is work order form showing the status of the accident in map & work order to complete the job.

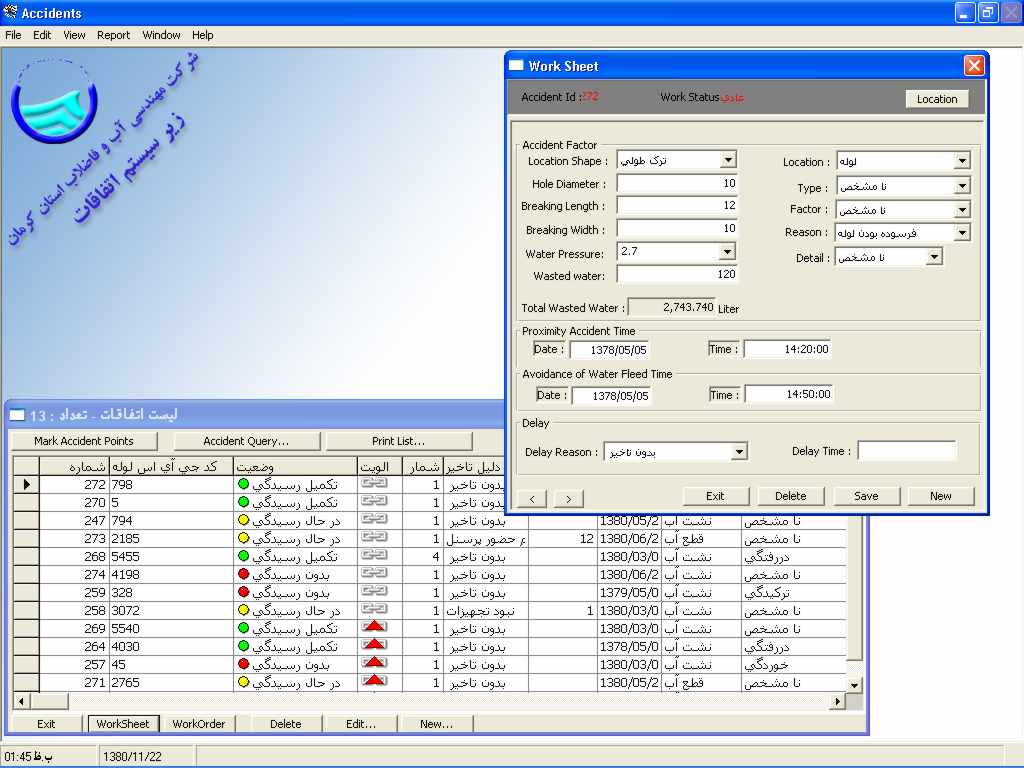

Here is the first step of filling a work sheet after accidents correction.

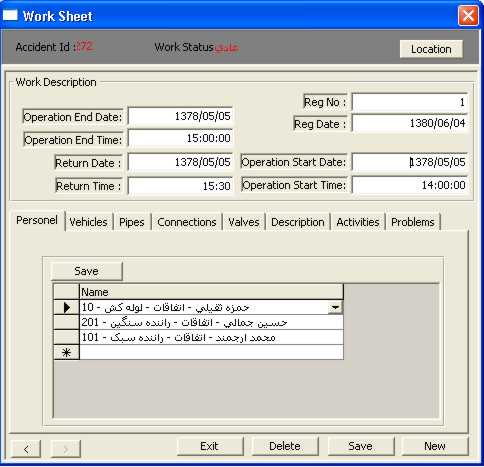

Third step of filling a worksheet for the accident details.

Ability of tracking a damaged pipes & its dependant pipes & Valves in its route network.

How to identify a pipe or Valve. (pipe & valve ID form)

Define an activity for historical references.

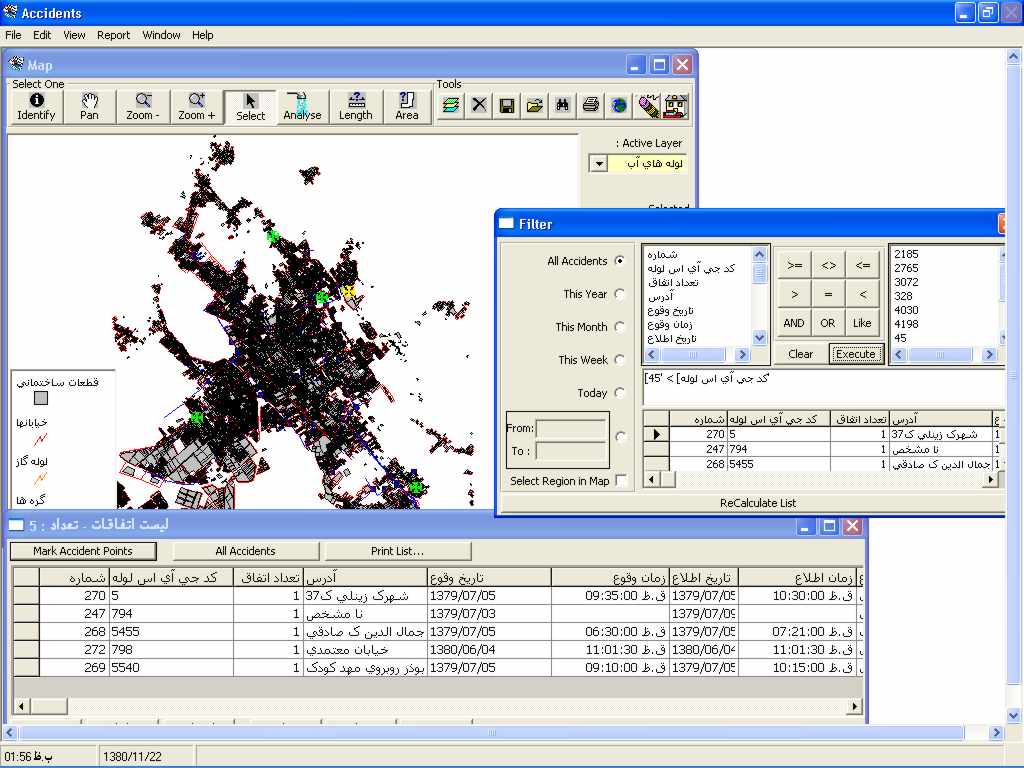

Query from accidents & the results in table and map.

Define working groups & team leaders to apply them for work orders.

Print out a work order form for team reference.

View some statistical (Timing & Annually) reports with application.
