Mark Levoe's Visalia

Entry for 1995

Hi Jeb,

Here's a data sheet on a plane I flew to 10th place at Visalia in 1995, It was designed visually, overlaid on a projected ellipse. I got lucky as it's at .983 per your program. A sweet flier, with little tendency to tip stall. wing loading was 9.5 oz sq. ft.

Mark Levoe

[Note: I am always delighted to accept credit for the Liftroll program, even though it was designed and built by John Hazel. Jeb.]

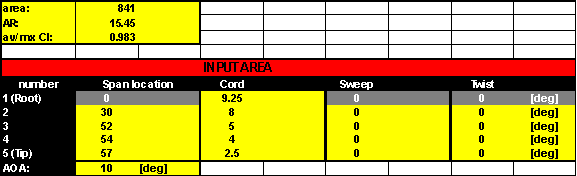

The input parameters.

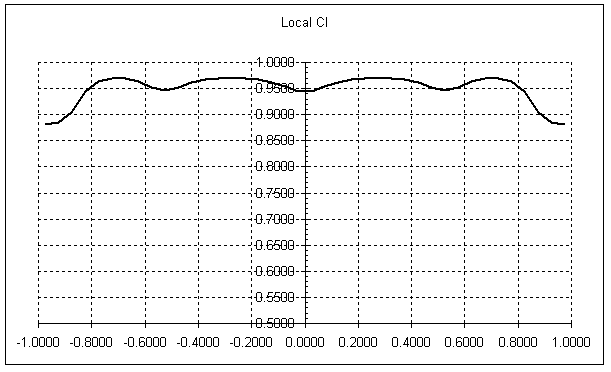

The CL Distribution

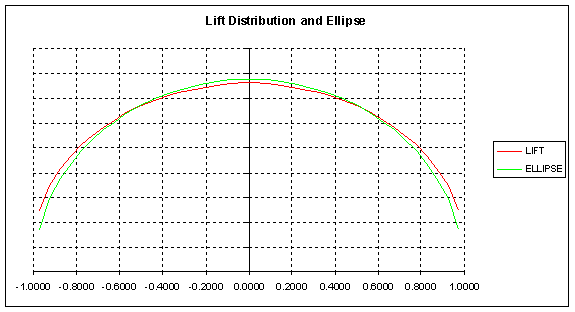

The Lift distribution

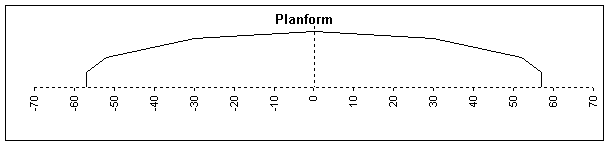

The planform
