You can see some pics at my Yankee Toys personal page as this is still under construction

A few photographs of my crude, yet effective On Board Air (OBA). It has 2 plugged ports for future use (1 for the ARB air lockers and 1 for additional connection), and 1 connection to have an air chuck in the front of the truck. The other air chuck is in the back, mounted on a "tee" connector with the drain cock for the tank.

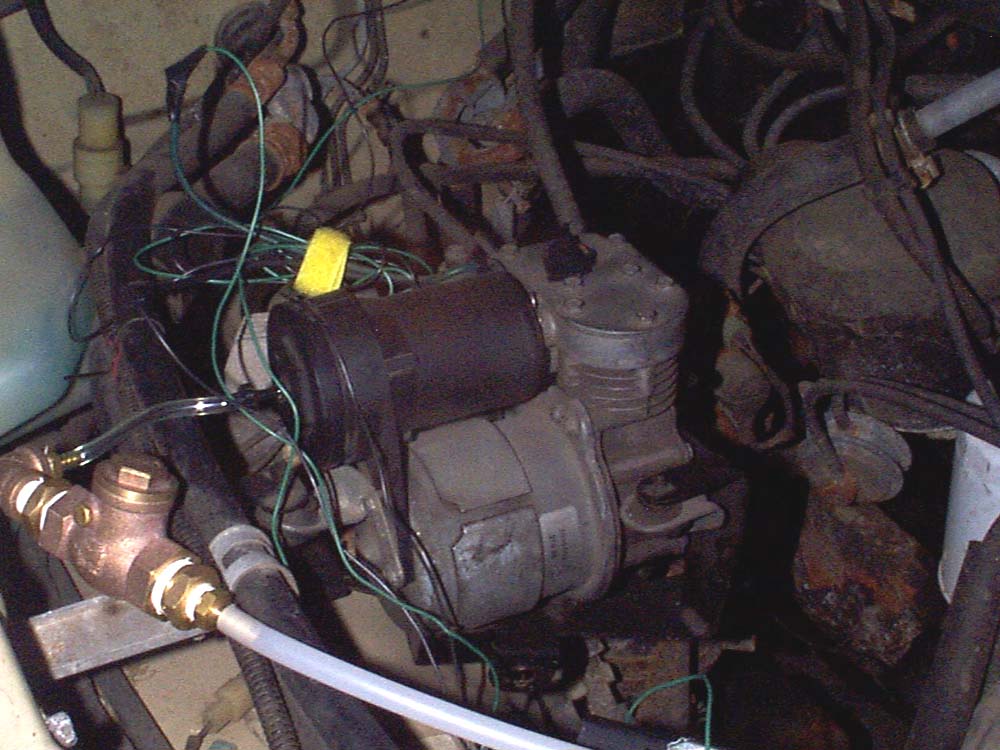

A Mid-80s Cadillac Air-Ride compressor, rated .27 cfm @125 psi. Can fill up a 33"x10.5R15 tire in 10 minutes. With the proper air tank, it might even power some air tools.

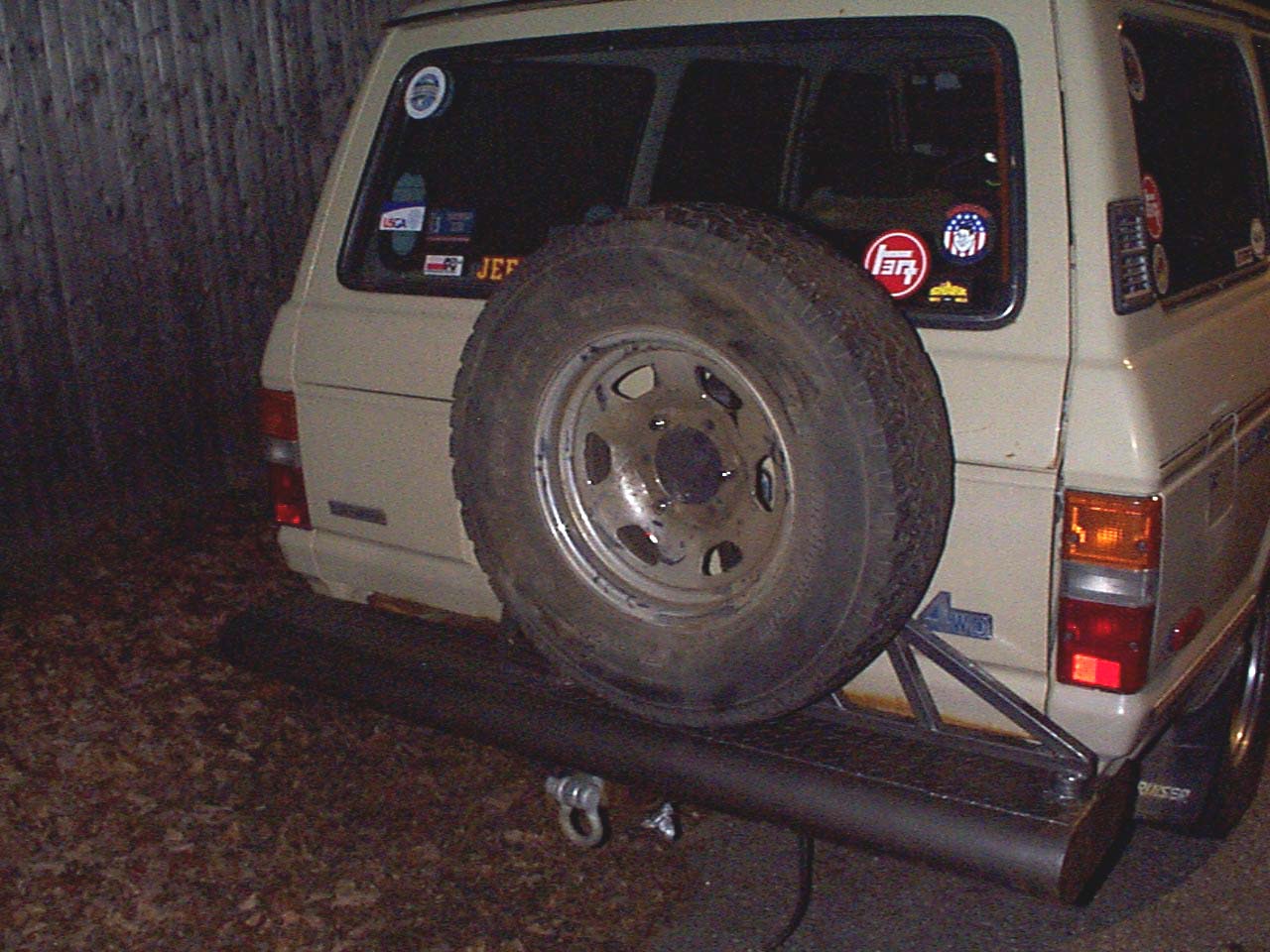

Here is a picture of the tank/bumper

Here is a picture of the home made manifold

The "official" parts list (Only for what it is installed)

6ea  1/4" FNPT "tee" connectors

4ea 1/4"x1" nipple

5ea 1/4" MNPT barb adapter

1ea 1/4" MNPT pressure relief valve set @ 150 psi

1ea 2" FNPT 0-150 psig gauge (I could only get a 0-100 psig gauge)

2 ea 1/4" NPT plug

1ea 1/4" FNPT check valve with unloader

1ea 1/4" NPT pressure switch, either set cut in at 80/cut out 130 psi or adjustable

1 ea roll of plumber's tape

Wire for the electrical (12v) connection
