SAP XI



Basis Troubleshooting steps



*   Tools and utilities used

*   Configtool (online configuration)

*   How to start and use

*   Offline configuration tool (offline configuration)

*   How to start and use

*   SDN (Deploy, undeploy services, jar,sda, zip files)

*   How to start and use

*   Visual Administrator (Start/Stop services, moitor etc..., activate/inactivate logging..etc)

*   How to start and use

*   Log viewer (Log Analysis)

*   How to start and use

*   Telnet to j2ee engine (J2EE admin expert level)

*   How to start and use

*   Java monitor called: jcmon (Monitor Cluster/server services, )

*   How to start and use

*   SAP Transaction codes & Programs






How to start and use SAP java technology tools

As the first step, basis person should know how to start each of these tools, since these are little different from the conventional tools, I am proving step by step with screen shots



*    How to start and use Configtool (online configuration)



Prerequisite.



  1. Need x-windows running locally on your PC. (eg:exceed from www.hummingbird.com or similar)
  2. Need <sid>adm password and host name of the system XI running

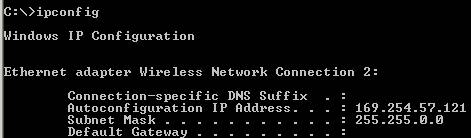

  3. You should know the ipaddress of your local PC




Steps

  1. Start the x-windows software in PC
  2. telnet to the server

Start->Run



Login with <sid>adm

  1. After successful login set the display setting by issuing following
    1. command: export DISPLAY= <your PC’s ipaddress>:0

eg:



Note: you can test this by command: echo $DISPLAY

as a result it should show your ip address



  1. Goto the directory /usr/sap/XIS/DVEBMGS03/j2ee/configtool
    1. Command: cd  /usr/sap/<SID>/DVEBMGS03/j2ee/configtool
  1. Start configtool

a.      Command: ./configtool.sh

b.      Following screen appears press “Yes” for default DB settings.





c.      Once connected you will get a screen as below.






*    How to start and use Offline configuration editor tool (offline configuration)





Prerequisite.



  1. Need x-windows running locally on your PC. (eg:exceed from www.hummingbird.com or similar)
  2. Need <sid>adm password and host name of the system XI running
  3. You should know the ipaddress of your local PC




Steps

  1. Start the x-windows software in PC
  2. telnet to the server

Start->Run



Login with <sid>adm



  1. After successful login set the display setting by issuing following
    1. command: export DISPLAY= <your PC’s ipaddress>:0

eg:



Note: you can test this by command: echo $DISPLAY

as a result it should show your ip address



  1. Goto the directory /usr/sap/<SID>/DVEBMGS03/j2ee/configtool
    1. Command: cd  /usr/sap/<SID>/DVEBMGS03/j2ee/configtool
  1. Start offline configuration editor tool

d.      Command: ./offlinecfgeditor.sh ()

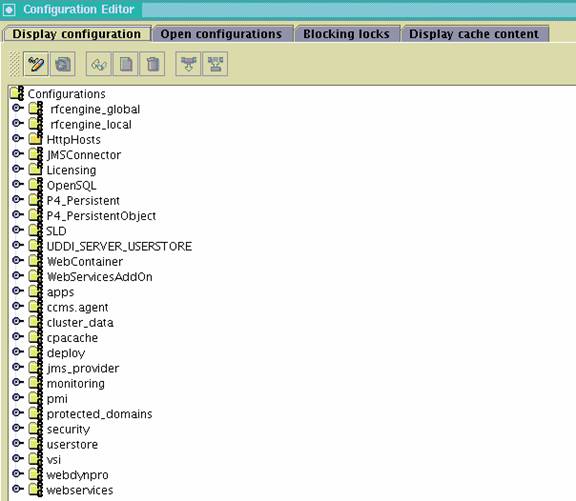

e.      Following screen appears.










*    How to start and use SDN (Deploy, undeploy services, jar,sda, zip files)



Prerequisite.



  1. Need x-windows running locally on your PC. (eg:exceed from www.hummingbird.com or similar)
  2. Need <sid>adm password and host name of the system XI running
  3. You should know the ipaddress of your local PC




Steps

  1. Start the x-windows software in PC
  2. telnet to the server

Start->Run



Login with <sid>adm



  1. After successful login set the display setting by issuing following
    1. command: export DISPLAY= <your PC’s ipaddress>:0

eg:



Note: you can test this by command: echo $DISPLAY

as a result it should show your ip address



  1. Goto the directory /usr/sap/<SID>/DVEBMGS03/SDM/program
    1. Command: cd  /usr/sap/<SID>/DVEBMGS03/SDM/program

Eg

:

  1. Start SDM toll

f.        Command: ./RemoteGui.sh

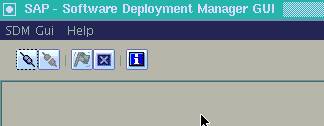

The following screen appears

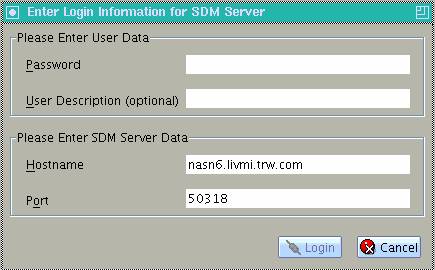

Click on “” or menu “login” following screen appears



Use the default password “sdm”  and donot change this password. And login. And you call see following at the bottom

 server.

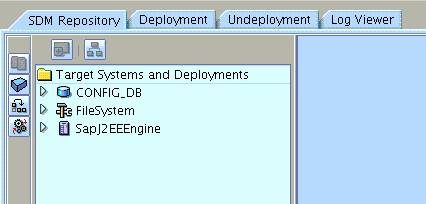

Once successful you get following screen

Select the tab for “deployment” etc..




*    How to start and use Visual Administrator (Start/Stop services, moitor etc..., activate/inactivate logging..etc)



Prerequisite.



  1. Need x-windows running locally on your PC. (eg:exceed from www.hummingbird.com or similar)
  2. Need <sid>adm password and host name of the system XI running
  3. You need J2EE_ADMIN password
  4. You should know the ipaddress of your local PC




Steps

  1. Start the x-windows software in PC
  2. telnet to the server

Start->Run



Login with <sid>adm



  1. After successful login set the display setting by issuing following
    1. command: export DISPLAY= <your PC’s ipaddress>:0

eg:



Note: you can test this by command: echo $DISPLAY

as a result it should show your ip address



  1. Goto the directory /usr/sap/<SID>/DVEBMGS03/j2ee/admin

                                                              i.      Command: cd  /usr/sap/<SID>/DVEBMGS03/ j2ee/admin



  1. Start Visual Administrator by issuing following command

command: go

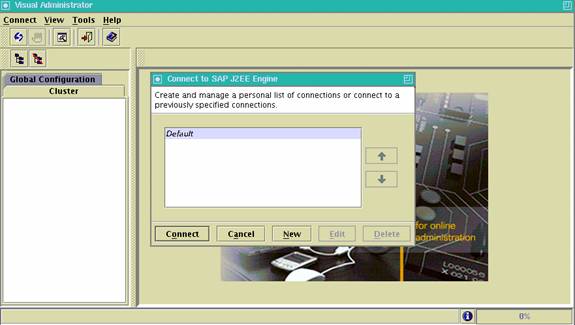

You will get a screen as below. Click on the “connect” (if there any connection made other than “default” you can use that.



Next screen use the J2EE_ADMIN password. (make sure the password is correct by logining to system using sapgui.

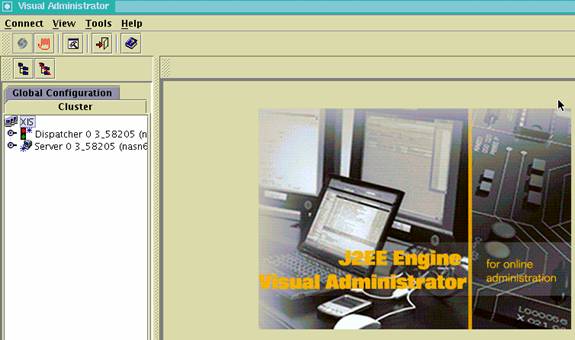

Once connection is successful you will see following screen








*    How to start and use Log viewer (Log Analysis)



Prerequisite.



  1. Need x-windows running locally on your PC. (eg:exceed from www.hummingbird.com or similar)
  2. Need <sid>adm password and host name of the system XI running
  3. You should know the ipaddress of your local PC




Steps

  1. Start the x-windows software in PC
  2. telnet to the server

Start->Run



Login with <sid>adm



  1. After successful login set the display setting by issuing following
    1. command: export DISPLAY= <your PC’s ipaddress>:0

eg:



Note: you can test this by command: echo $DISPLAY

as a result it should show your ip address



  1. Goto the directory /usr/sap/<SID>/DVEBMGS03/j2ee/admin/logviewer-standalone

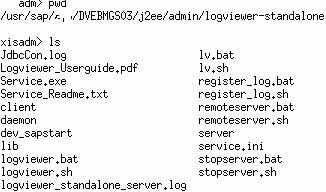

    1. Command: cd  /usr/sap/<SID>/DVEBMGS03/j2ee/admin/logviewer-standalone

  1. Start log viewer tool
    1. command: ./logviewer.sh

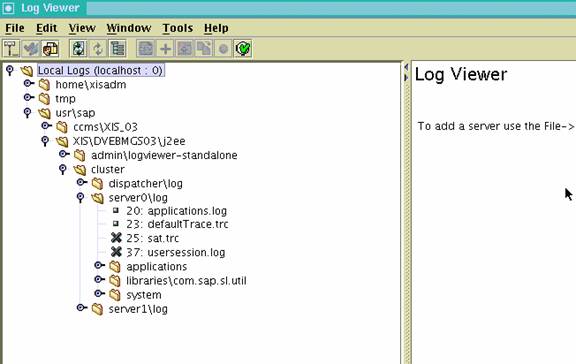

  2. If success following window will appear






*    How to start and use Telnet to j2ee engine (J2EE admin expert level)

Following links will give you an idea and help you to decide on the ports commands etc.. But I have attached the screen shots step by step how practically you can achieve this.



Links:

http://help.sap.com/saphelp_erp2005/helpdata/en/a2/6052bb98033c4dbef5df04f68b0c7e/content.htm

http://help.sap.com/saphelp_erp2005/helpdata/en/4e/6e723964c11d45ad3aeca71482f084/content.htm



Command list Cluster: http://help.sap.com/saphelp_erp2005/helpdata/en/84/0e3f15fc6af94f82c2e6449bcef3d1/content.htm

Command list Server : http://help.sap.com/saphelp_erp2005/helpdata/en/ae/01343ef3f9ff2de10000000a114084/content.htm



Prerequisite.



  1. Need j2ee_admin password and host name of the system XI running
  2. Should know the instance number (system number)



Steps

  1. Start the x-windows software in PC
  2. telnet to the server with port ending with “8”

Start->Run



Eg: here my system number is “03”  so 50308..if your system number (instance number) is “01” then telnet to host with port “50108

you can find more help on this at http://help.sap.com/saphelp_erp2005/helpdata/en/a2/f9d7fed2adc340ab462ae159d19509/content.htm



Once the port and host is successfully identified, make sure J2EE is running , then telnet, after that you will get following screen





Use user name as “j2ee_admin

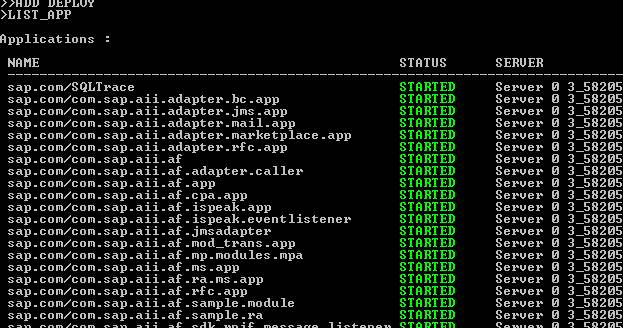

And you can start using the commands as below

See link for more commands (http://help.sap.com/saphelp_erp2005/helpdata/en/4e/6e723964c11d45ad3aeca71482f084/content.htm)














*    How to start and use Java monitor called: jcmon (Monitor Cluster/server services, )

Prerequisite.



  1. Need <sid>adm password and host name of the system XI running



Steps

  1. telnet to the server

Start->Run



Login with <sid>adm



  1. Goto the profile directory /usr/sap/<SID>/SYS/profile

Command: cd /usr/sap/<SID>/SYS/profile

  1. List the file and get the current profile name

Eg: “SID_DVEBMGS03_hostname”



  1. Now issue the command : jcmon pf=<profile_name>

Eg:  jcmon pf=<SID_DVEBMGS03_hostname

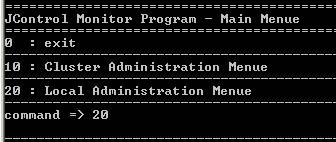

  1. Select “10” or “20” according to your need

You get the options list as below
