Stereo Modifications

The stock stereo system I received with my Probe when I bought it new from the lot was a Ford cassette AM/FM system with 4 speakers.  The stock system is very good, despite having only 4 speakers.  I had wanted a CD changer in the car, so decided to buy an aftermarket stereo.  I got a Denon system with 10 disc cd changer.  From there I had decided I wanted more power in the system, thus came into being what you see below.

Custom Stereo

The stereo you are looking at is a Denon head unit w/10 disc changer 1240 watt system.  The components in the car consist of: Denon Head unit (AM/FM, cassette, cd changer) 10 Disc Changer 2 600 Watt California Series A640 Profile Amps 4 outputs each 1 Denon 40 watt amp 2 output 14 output Acoustic Crossover 4 pioneer door/back seat speakers 2 mobile authority 12 inch subwoofers 2 infiniti kappas 2 jbl tweeters 1 noise suppressor

The stereo was the most difficult modification I did to this car.  I wanted something pretty elaborate.  I did the stereo piece by piece.  The most difficult part of this install is the removal of the door and side panels.  Once those are off the entire thing is a piece of cake.

This stereo and a lot of other looks pretty complicated but is actually very simple.  The first thing to do is to route 2 4 gauge wires from the battery to the back of the car, in the hatch.  This will power all of the amps.  I used a pheonix gold power distributor and ran these power wires into it.  From there you can connect individual wires to connect to the amps, and of course the crossover.

More instructions on installing stereo to come

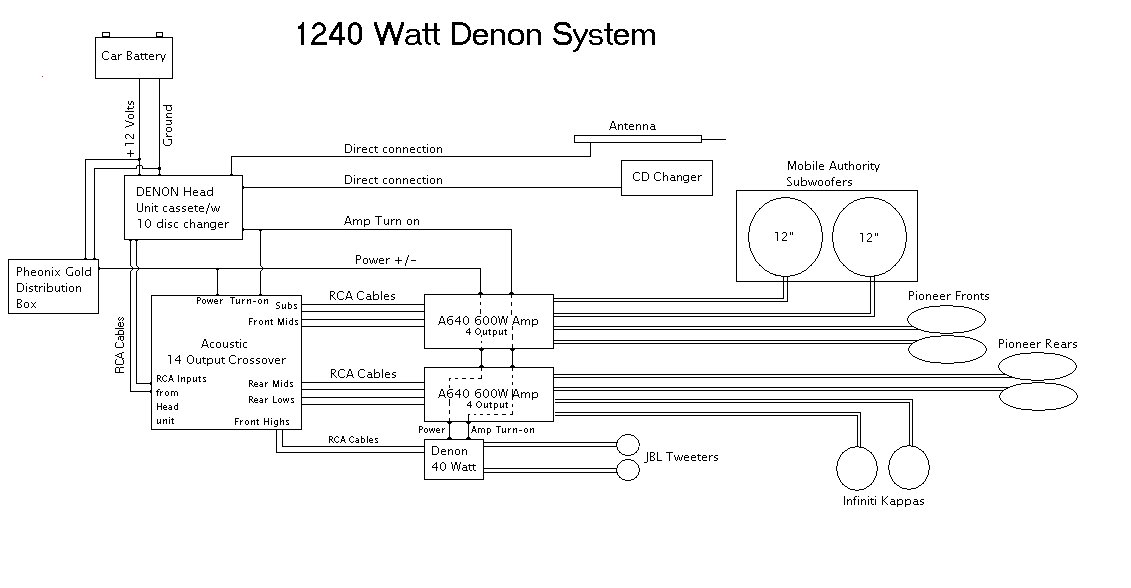

Here is a schematic to this stereo:

Note: As with any modifications to a car, there is risk of damage if it is not done correclty.  I am not responsible for incorrectly installed modifications, or damage caused by it.  Do these modifications at your own risk.
