Find the numbers you need for your ride in
the Specifications Charts contained here.
Dimensions | Engines
| Drivetrain - Suspension | Fluid
Capacities
|
1989 V6, Charlottetown, PEI
(Mike Bartlett Photo, © 2000.)
My Wedding Day, July 30,'99 -
Mt.Pearl, NF (Phil Hansford, © 1999.) |

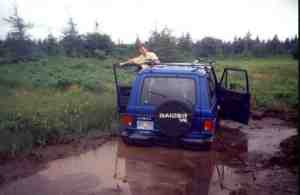

1988 Rebadged Raider, Pinsent Falls,
NF (Tanya Norris © 1997.) |
| Dimensions |
4
Cylinder |
6
cylinder (2d) |
93-98
4Door |
| Overall
length (w/o spare) |
155.9" |
156.1" |
186.6" |
| Overall
width |
66.1" |
66.1" |
70.3" |
| Overall
height |
70.9" |
72.8" |
|
| Wheelbase |
92.5" |
92.5" |
107.3 |
| Angle of
approach |
38° |
38° |
|
| Angle of
departure |
28° |
28° |
|
| Ramp breakover angle |
21° |
21° |
|
| Ground
Clearance |
8.3" |
8.5" |
|
| Curb weight
(auto/manual transmissions) |
NA/3295 lbs |
3582/3615 lbs |
4482 lbs |
| GVWR |
4,210 lbs |
4,850 lbs |
|
| Engines |
4
Cylinder |
3.0l
V6 |
3.5l
V6 |
| Displacement |
155.9 cid, 2.6
litres |
181 cid, 3.0
litres |
213 cid, 3.5l |
| Engine ID # |
G54B |
6G72 |
|
| Configuration |
single
overhead cam |
single
overhead cam |
dual overhead
cam |
| Fuel
Delivery |
carburetor |
multi-port FI |
multi-port FI |
| Net HP |
109 @ 5000 rpm |
143 @ 5000 rpm |
215 @5000 rpm |
| Net Torque |
142 ft. lbs @
3k rpm |
168 ft. lbs @
2.5k rpm |
228 @3k rpm |
| Firing
Order |
1-3-4-2 |
1-2-3-4-5-6 |
|
| Timing |
5-7 degrees BTDC |
5-7 degrees BTDC |
|
| Compression |
8.7 |
8.9 |
|
| Bore |
3.59" |
3.59 |
|
| Stroke |
3.86 |
2.99 |
|
| Drivetrain/Susp'n |
4
Cylinder |
6
cylinder |
| Front Suspension |
Indep't: A-arms w/sway bars |
Indep't: A-arms w/sway bars |
| Rear Suspension |
Rigid axle: leaf springs,
shocks |
Rigid axle: coil springs,
shocks |
| 4 Wheel Drive System: |
P/T 4WD, w/low-range |
P/T 4WD, w/low-range |
| Transmission: |
4 speed auto/ 5 speed manual |
4 speed auto/ 5 speed manual |
| Power Steering |
Recirculating ball nut |
Recirculating ball nut |
| Tire Size (OEM) |
P225/75R15 |
P235/75R15 or P265/70R15 |
| Fluid Capacities |
4
Cylinder |
6
cylinder |
| Engine oil |
5-1/2 qts (5.3l) |
6 qts (5.41l) |
| Gasoline |
60 L (15.9 gal) |
75 L (19.8 gal) |
| Coolant |
8-1/2qts (8.0l) |
9-1/2qts (9.1l) |
| Transmission (Automatic)
83-86 |
14.4 pts |
- |
| Transmission (Automatic)
87-89 |
15.2 pts (7.2l) |
15.2 pts (7.2l) |
| Transmission (5 speed
manual) 83-86 |
4.6 pts |
- |
| Transmission (5 speed
manual) 87-89 |
4.7 pts (2.2l) |
5.3 pts (2.5l) |
| Front Differential |
2.3 pts (1.1l) |
2.3 pts (1.1l) |
| Rear Differential |
3.8 pts (1.8l) |
5.5 pts (2.6l) |
| Transfer Case (83-86) |
4.6 pts |
- |
| Transfer Case (87-89) |
4.7 pts (2.2l) |
4.7 pts (2.2l) |
| Power Steering |
2.2pts (1.06l) |
2.2pts (1.06l |

|
