1961 Buick
Electrical

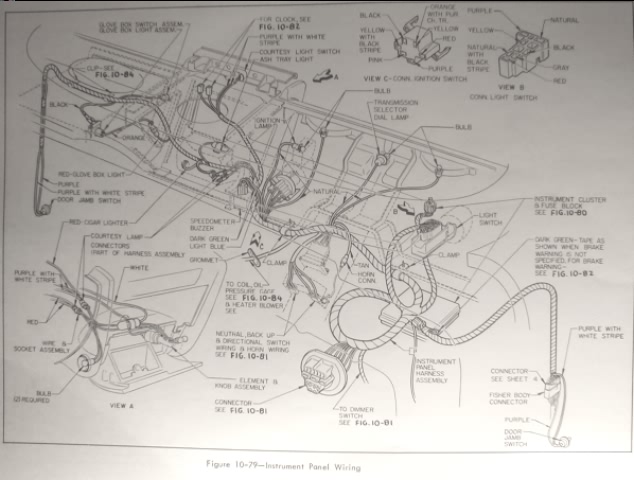

Dash Panel



" I have tried to keep all the diagrams as clear and large as possible and still have them at a reasonable download size. I am in the process of adding as many schematics I have as possible, as of 3-20-02. If you find any of the information is obscure or have a question, feel free to email me and I'll try to clarify it for you."



Chassis wiring diagram - 142Kb
