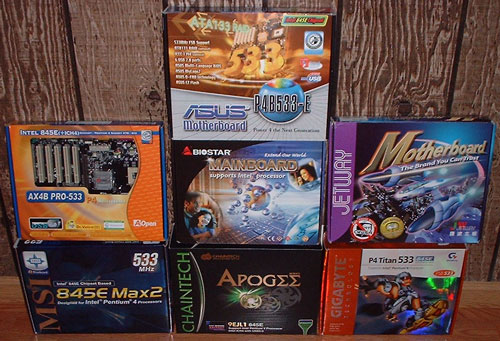

AOpen AX4B Pro-533
Asus P4B533-E
Biostar P4TDK
Chaintech 9EJL1
Gigabyte GA-8IEXP
Intel D845EBG2L
Jetway 845EPRO
MSI 845E Max2-BLR
| Manufacturer | Gigabyte | Intel | Jetway | MSI |
| Model | GA-8IEXP | D845EBG2L | 845EPRO | 845E Max2-BLR |
| Socket | mPGA478 | mPGA478 | mPGA478 | mPGA478 |
| Supported FSB | 400MHz, 533MHz | 400MHz, 533MHz | 400MHz, 533MHz | 400MHz, 533MHz |
| Size (LxH) | 305 x 230 mm | 305 x 205 mm | 305 x 230 mm | 305 x 244 mm |
| Form Factor | ATX | ATX | ATX | ATX |
|
Overclocking Info |
||||
| CPU Config | BIOS | BIOS | BIOS/Jumpers | BIOS |
| Multiplier Config | Auto (locked) | Auto (locked) | Auto (locked) | Auto (locked) |
| FSB Range / Increments | 100 - 355 / 1 | 100, 133 / auto | 133 - 200 / 1 | 133 - 233 / 1 |
| Core Voltage Control | BIOS | N/A | BIOS | BIOS |
| Core Voltage Range / Increments | 1.5 - 1.725 / .025 | N/A | 1.10 - 1.85 / .025 | 1.10 - 1.80 / .025 |
| Ram Voltage Control | BIOS | N/A | BIOS | BIOS |
| Ram Voltage Range / Increments | 2.5 - 2.8 / .1 | N/A | 2.5 - 2.8 / .1 | 2.5 - 2.8 / .1 |
| AGP Voltage Control | BIOS | N/A | BIOS | BIOS |
| AGP Voltage Range / Increments | 1.5 - 1.8 / .1 | N/A | 1.5 - 1.6 / .1 | 1.5 - 1.8 / .1 |
|
BIOS |
||||
| BIOS | Award | AMI | Award | AMI |
| Manual Interrupt Assignment | Yes | Yes | No | No |
|
Chipset |
||||
| Northbridge | 82845E MCH (i845e) | 82845E MCH (i845e) | 82845E MCH (i845e) | 82845E MCH (i845e) |
| Southbridge | 82801DB ICH4 | 82801DB ICH4 | 82801DB ICH4 | 82801DB ICH4 |
| Northbridge Fan | Yes | No | No | Yes |
|
Memory |
||||
| Maximum Ram | 2048 MB | 2048 MB | 2048 MB | 2048 MB |
| DIMM Slots | 3, DDR | 2, DDR | 2, DDR | 3, DDR |
| Memory Type | unbuffered DDR-SDRAM | unbuffered DDR-SDRAM | unbuffered DDR-SDRAM | unbuffered DDR-SDRAM |
| ECC Support | No | No | No | No |
|
Standard Components |
||||
| IDE controller | 2 x UltraATA/100 | 2 x UltraATA/100 | 2 x UltraATA/100 | 2 x UltraATA/100 |
| PCI Slots | 6 x 32bit | 6 x 32bit | 5x 32 Bit | 6 x 32bit |
| AGP | 4x | 4x | 4x | 4x |
| AGP Card Lock | Yes | Yes | Yes | Yes |
| ACR/AMR/CNR | 0/0/1 | 0/0/0 | 0/0/1 | 0/0/1 |
| Parallel Ports | 1 | 1 | 1 | 1 |
| Serial Ports | 2 | 1 | 2 | 2 |
| Built-In USB | 2 (USB 2.0) | 4 (USB 2.0) | 2 (USB 2.0) | 2 (USB 2.0) |
| Addable USB | 4 (USB 2.0) | 2 (USB 2.0) | 4 (USB 2.0) | 4 (USB 2.0) |
| Fan Connectors | 4 | 3 | 3 | 3 |
|
Sound System |
||||
| Type | PCI | PCI | AC'97 | AC'97 |
| Manufacturer / Chip | Creative CT5880 | C-Media CMI9738 | C-Media CMI9738 | Realtek ALC650 |
| Max Channels | 6 | 4 | 4 | 6 |
| 5.1 Surround | Yes | No | No | Yes |
|
Additional Components |
||||
| Wakeup on LAN (WOL) | Yes | Yes | Yes | Yes |
| Wakeup on Modem (WOM) | Yes | Yes | Yes | Yes |
| IrDA-port | Yes | No | Yes | Yes |
| Chassis Intrusion Detection | Yes | No | No | Yes |
| Integrated 10/100Mbit LAN | Intel 82562ET | Intel 82562ET | N/A | Intel 82562ET |
| Integrated RAID | Promise PDC20276, ATA/133 | N/A | Promise PDC20275, ATA/133 | Promise PDC20276, ATA/133 |
| Temperature Monitoring | CPU, System | CPU, System | CPU, System | CPU, System |
| Firewire Support | Yes | No | No | No |
| Fan Status Monitoring | 3 of 4 | all (3) | all (3) | all (3) |
|
Package |
||||
| Manual / Quality | Better than Average | ? | Average | First Rate |
| Languages | English, Chinese | ? | English | English |
| Quick Setup Guide | Yes | ? | No | Yes |
| Cables | 2x IDE ATA/133, 1x IDE ATA/100, 1x Floppy, Sound Bracket, Firewire Bracket | ? | 2x IDE ATA/100, 1x Floppy, Headphones | 2x IDE ATA/100, 1x Floppy, S-Bracket |
| USB Adapter | Yes | ? | No | Yes (2) |
| IO Shield | Yes | Yes | No | No |
| Bundled Software | Norton Antivirus 2002, Norton Personal Firewall 2002, Adobe Acrobat Reader 5.0 | ? | Recovery Genius, PC-cillin 2002 | Adobe Acrobat Reader 5.0, PC-cillin 2002, E-Color 3Deep |
มาดูผลทดสอบกันครับ
คือว่า ....อ่า... Gigabyte อีกแล้วอ่ะ
ตารางจัดอันดับของเวป explosivelabs ครับ
(ถึงแม้ว่าโดยรวมแล้ว GIGA ไม่ใช่ตัวที่ดีที่สุด แต่อย่างว่าล่ะครับ มันถูกนี่หว่า)
| Rankings | Editor's | Best Buy | Features |
| 1. | Gigabyte GA-8IEXP | Gigabyte GA-8IEXP | Gigabyte GA-8IEXP |
| 2. | Asus P4B533-E | AOpen AX4B PRO-533 | MSI 845E Max2-BLR |
| 3. | MSI 845E Max2-BLR | Jetway 845EPRO | Chaintech 9EJL1 Apogee |
| 4. | AOpen AX4B PRO-533 | Chaintech 9EJL1 Apogee | Asus P4B533-E |
| 5. | Chaintech 9EJL1 Apogee | Intel D845EBG2L | AOpen AX4B PRO-533 |
| 6. | Jetway 845EPRO | Biostar P4TDK | Jetway 845EPRO |
| 7. | Intel D845EBG2L | MSI 845E Max2-BLR | Intel D845EBG2L |
| 8. | Biostar P4TDK | Asus P4B533-E | Biostar P4TDK |
