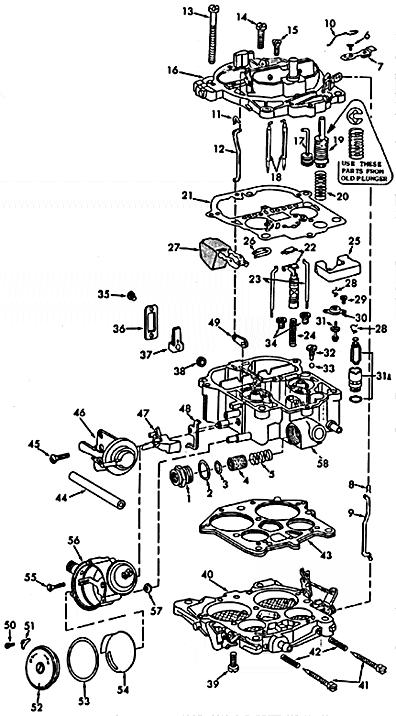

2 Gasket - filter nut
3 Gasket - fuel filter
4 Filter - fuel inlet
5 Spring - fuel filter
6 Screw - idle vent valve
7 Valve - idle vent
8 Retainer - pump rod
9 Rod - pump
10 Lever - idle vent valve
11 Retainer - choke rod
12 Rod - choke
13 Screw - air horn (4)
14 Screw - air horn (3)
15 Screw - air horn (2)
16 Bowl cover assy.
17 Dashpot piston & rod assy 1965-66
18 Metering rods - secondary (2)
19 Pump assy.
20 Spring - pump return
21 Gasket - air horn
22 Power piston assy. - primary
23 Metering rods - primary (2)
24 Spring - power piston
25 Insert - float bowl
26 Hinge pin - float
27 Float & lever assy.
28 Pull clip - float needle
29 Screw - needle diaphragm retainer (2)
30 Retainer - needle diaphragm
31A Needle seat, gasket assy.
32 Plug - pump disc. ball
33 Ball - pump discharge
34 Jets - primary (2)
35 Screw - idle compensator
36 Cover - idle compensator
37 Idle compensator assy.
38 Gasket - idle compensator
39 Screw - throttle body (3)
40 Throttle body assy.
41 Needles - idle adjust (2)
42 Springs - idle adjust needle (2)
43 Gasket - throttle body
44 Hose - vacuum 4MV
45 Screw - vacuum break control bracket attaching
46 Vacuum break control & bracket assy. 4MV
47 Cam - fast idle
48 Lever - secondary lockout
49 Lever - intermediate
50 Screw - stat retainer (3) 4MC
51 Retainers - stat cover
52 Stat cover & spring assy. 4MC
53 Gasket - stat cover 4MC
54 Plate - choke baffle 4MC
55 Screw - stat housing attaching
56 Housing - choke and vacuum break assy. 4MC
57 Gasket - choke housing 4MC
58 Bowl assy. - float
