:PAF HANGER:


	AIR CRAFTS

	F-16 A

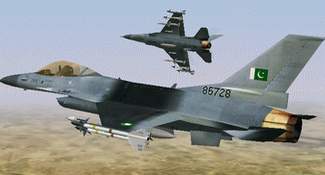

	DOWNLOAD Size : 315 KB	The F-16 A's induction into the PAF started in 1983. It is a single- seat air combat fighter and is a true multi-mission aircraft. It can carry up to 15,200 lbs of bombs, missiles and rockets. It presently equips No. 9 and No. 11 (OCU) squadrons of the PAF.

	F-16 B

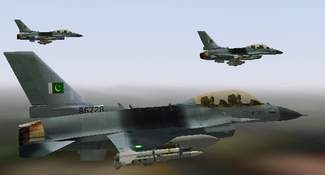

	DOWNLOAD Size : 354 KB	The F-16 B's induction into the PAF started in 1983. It is a dual-seat combat capable fighter trainer and is a true multi-mission aircraft. It can carry up to 15,200 lbs of bombs, missiles and rockets. It presently equips No. 9 and No. 11 (OCU) squadrons of the PAF.

	Mirage III/V
	DOWNLOAD Size : 187 KB	The Mirage's induction into the PAF started in 1967. Mirage III is a high-speed, all weather, delta wing, long-range fighter-bombers & Mirage V is a ground attack aircraft derived from the Mirage III, which itself can also be employed in the interceptor role. The Mirage currently equips No. 5, No. 7, No. 8, No. 15, No. 22 (OCU), No. 25 and a CCS squardon.

	PIA Boeing 747
	DOWNLOAD Size : 66 KB	Some of the Boeing 747-300s inducted in 1999 have color scheme like this which I like the the best, although the new Boeing 777 inducted have good outlook but this looks good

	F-7 P/PG

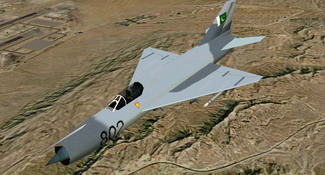

	DOWNLOAD Size : KB	The F-7's induction into the PAF started in 1989. F-7P is the primary air defense fighter of the PAF. Derived from the MiG-21 model the F-7P embodies some 20 PAF specified changes .F-7 currently equips No. 2, No. 14, No. 17, No. 18 (OCU), No. 19 (OCU), No. 20, No. 23 and CCS squadrons of the PAF.

	K-8
	DOWNLOAD Size : 183 KB	The K-8 is a tandem-seat basic jet trainer which has been co-produced by Pakistan and China. It first flew in 1991 and are planned to replace the T-37sTotal order for the PAF may reach up to 75K-8 also successfully passed the armament test at PAF. Minhas and thus could also be armed with air-to-air missiles for the air-field defense.

	F-6

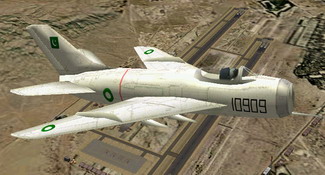

	DOWNLOAD Size : 404 KB	Having been in the service for 34 years, the last F-6 aircraft was officially phased out on March 27, 2002 at PAF Samungli,It was a twin-engine, supersonic, day fighter-interceptor with good maneuvering capability. The type was introduced in 1966 and about 180 were acquired out of which around 40 remained airworthy until 2002.

	PAF Boeing 707
	DOWNLOAD Size : KB	The 3 Boeing 707s were transferred from PIA in 1987 and serve with No. 12 VVIP squadron. One is used for VIP movement and the others for cargo-carrying duties.

	PIA Boeing 707
	DOWNLOAD Size : KB	The Boeing 707's from Pakistan International Airlines have color scheme like this one.

	C-130 E/H
	DOWNLOAD Size : KB	Lockheed C-130 Hercules is a medium/long range combat transport aircraft. It entered service with the PAF in 1963It can carry a payload of about 35000 lbs or can carry 92 troops or 64 paratroops. Versatile and flexible, it is capable of operating from short and unprepared runways. It serves with No. 6 squadron and No. 3 Squadron

	F-104
	DOWNLOAD Size : KB	The F-104 was inducted

	FT-5
	DOWNLOAD Size : KB	Derived from the Mig-17 model the Fighter trainer FT-5 is in service with PAF for training. t is a dual-seat combat capable fighter trainer.


	LOADOUTS

	PAF JF-17
	DOWNLOAD Size : 68 KB	JF-17 has not yet entered into service & production so exact weapon configuration is not final yet. 23 mm GSh-23-2 twin-barrel cannon A/A: SD-10 BVR, AIM-9, PL-2, PL-3, ++ 6 - PL-10 AAMs AGMs, bombs

	PAF F-16 A/B
	DOWNLOAD Size : 86 KB	F-16 is a multi-mission aircraft which is used in both fighter and ground attack roles. One M-61A1 20mm multi-barrel cannon with 500 rounds A/A: AIM-7, AIM-9P, AIM9L, Matra R.530 A/G: AGM-88, AGM-65, GBU-12, GBU-10, MK-82, MK-84, MK-20

	PAF Mirage III/V
	DOWNLOAD Size : 345 KB	Mirage III is fighter/bomber aircraft ans mirage V is used in ground attack roles. A/A: Matra Magic R.550, AIM-9P, Magic II, Matra R.530 A/G: AS.30, Rockets, Durandal, MK-82, BL-755, Neplam Anti-Ship: AM-39 'Exocet' (mirage 5) 30-mm cannon

	PAF F-7 P/PG
	DOWNLOAD Size : KB	2 X 30 mm / 23 mm cannon. AIM-9L Sidewinder, PL-2, PL-9, PL-5, Matra R530. MK-20, MK-82. Drop tanks, Bombs, Rockets.


	WEAPONS
	Combined Effects Munitions (CEM)
	DOWNLOAD Size : 11 KB	Launch Speeds: 400-600 KTAS Launch Altitude: 100 m (level) Angle of Attack: 0 to 60 Degrees Operational Temperature Range: -40o to +71oC Environmental Qualification: As per MIL-STD-331 and MIL-STD- 801E Carriage Qualification : Same as MK-20 Shelf Life: 20 Years Targets: Personnel Armored Vehicles

	PL2/PL3 Short Range Air to Air Infrared Missile
	DOWNLOAD Size : 2 KB	Length: 2.99 m Body diameter: 127 mm Wing span: 0.53 m Launch weight: 82 kg Warhead: 13.5 kg HE blast/fragmentation Fuze: IR Guidance: IR Propulsion: Solid propellant Range: 3 km The PL-2/3 is similar to AIM-9B Sidewinder

	HAFR 1 Ant Runway Weapon

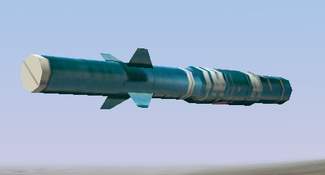

	DOWNLOAD Size : 15 KB	Overall Length: 2491 mm Length excluding the Front Fairing: 2414 mm Maximum Body Diameter: 223 mm Maximum Span: 430 mm Approximate Overall Propelled Weight: 165 kg Approximate Launch Weight: 200 kg

	SD-10 Beyond Visual Range Missile
	DOWNLOAD Size : KB	The SD-10 is similar to the AIM-120. With a length 3.85m, diameter 20.3cm weight 180 kg the SD-10 is a bit longer, wider and heavier than the AIM-120. It has 4 rear-mounted control fins which are longer and more prominent than those of the AIM-120. Internally, the leading edge of the centre body fins is in line with the start of the missile's rocket motor. which is a variable-thrust sold rocket booster that offers 2 levels of motive power for different sections of the flight envelope.

	AWC MK-82/83/84

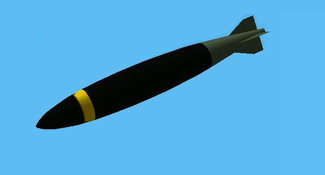

	DOWNLOAD Size : 34 KB	Pakistan's Air Weapons Complex's MK series bombs MK-84, MK-83, Mk-82 MK-81 MK-82 MK-83 MK-84 ---------------------------------------------------------------- Length mm 1252 1537 1841 2500 Diameter " 228.6 273.05 355 457 Explosive Kg 45 87 200 430 Service life I N D E F I N I T E
