3.7cm PaK 35/36 auf Zugkraftwagen 1t

3.7cm PaK 35/36 auf Zugkraftwagen 1t

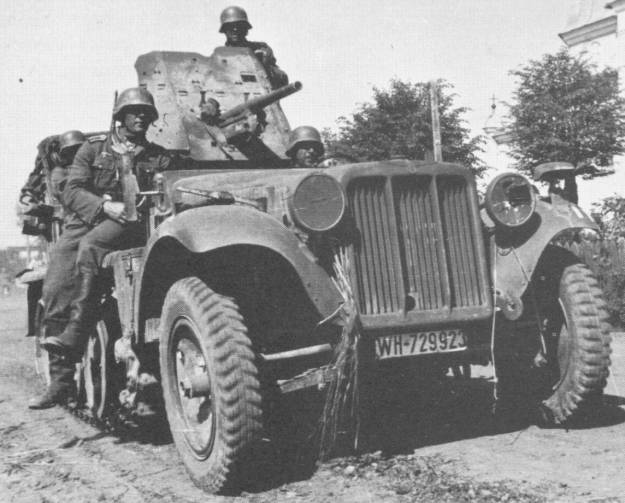

This conversion was made in order to provide mobility for 37mm PaK 35/36 L/45 anti-tank gun for use by Panzerjäger units by mounting the gun on Zugkraftwagen 1t - halftracked 1-ton prime mover. The gun was mounted either with its carriage or on a special pedestal mount. Some vehicles had additional armor plates installed for protection for both the crew (side of the gun) and vehicle itself (front of the engine).

Specifications

Weight:5500kg
Crew:7-8 men
Engine: Maybach HL42TRKM / 6-cylinder / 100hp
Speed:Road: 65km/h
Cross-Country: --km/h
Range:Road: 300km
Cross-Country: ---km
Fuel Capacity:115 litres
Lenght:4.75m
Width:1.93m
Height:2.00m
Armament: 37mm PaK 35/36 L/45
Ammo:37mm - ? rounds
Armor:none
