Vehicles of the Wehrmacht 1939-1945

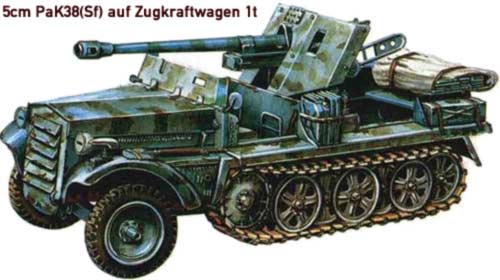

5cm PaK38(Sf) auf Zugkraftwagen 1t

In 1941, number of Sd.Kfz.10 haltracks was mounted with 50mm Pak 38 L/60 guns to create light self-propelled anti-tank guns. The vehicle was a standard Sd.Kfz.10 mounted with complete gun with its wheels removed. Armor plates were added to provide additional protection for the driver's cab and the engine. All were issued to Waffen SS units and served on the Eastern Front.

Specifications

Weight:	----kg
Crew:	2+ men
Engine:	Maybach HL42TRKM / 6-cylinder / 100hp
Speed:	Road: 65km/h Cross-Country: --km/h
Range:	Road: 300km Cross-Country: ---km
Fuel Capacity:	115 litres
Lenght:	4.75m
Width:	1.93m
Height:	2.00+m
Armament:	50mm PaK 38 L/60
Ammo:	50mm - ? rounds
Armor:	none
