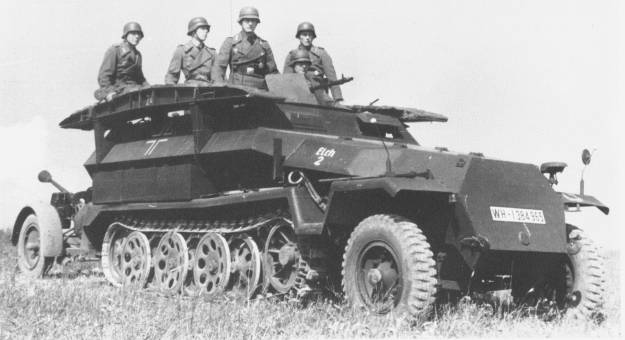

mittlere Pionierpanzerwagen Sd.Kfz.251/7

mittlere Pionierpanzerwagen Sd.Kfz.251/7

Standard Sd.Kfz.251 converted to be used by Panzerpionier companies. It was fitted with racks to carry small assault bridge, heavy equipment and other equipment such as mines, tools etc. Sd.Kfz.251/7 used by HQ units was fitted with additional radio equipment.

Specifications

Weight:(8070) 8870kg
Crew:7-8 men
Engine: Maybach HL42TUKRM / 6-cylinder / 100hp
Speed:Road: 50km/h
Cross-Country: 10km/h
Range:Road: 300km
Cross-Country: 150km
Fuel Capacity:160 litres
Lenght:5.80m
Width:2.10m
Height:2.70m
Armament: 2 x 7.92mm MG34/42 & 7.92 PzB39
Ammo:7.92mm - 4800 rounds
7.92mm PzB - 40 rounds
Armor:6-15mm
