leichte Gepanzerte Munitionskraftwagen Sd.Kfz.252

leichte Gepanzerte Munitionskraftwagen Sd.Kfz.252

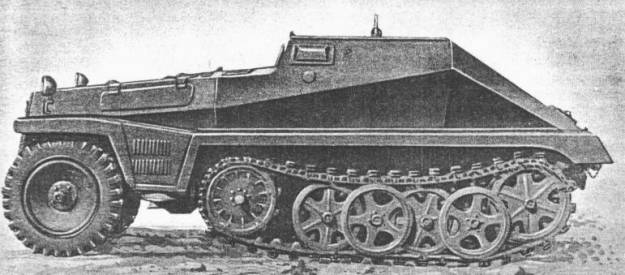

Sd.Kfz.252 was a light armored ammunition carrier designed for Sturmartillerie batteries. Some 413 were produced by Demag/Wegmann from June of 1940 and then by Deutsche Werke from January of 1941 until September of 1941. All were issued to Sturmartillerie batteries. In order to increase the load carried by Sd.Kfz.252, Wegmann produced ungepanzerter Munitionsanhänger Sonder Anhänger (Sd Anh) 32/A trailer, which carried additional 36 rounds of 75mm ammunition. Sd.Kfz.252 was eventually replaced by Sd.Kfz.250/6.

Specifications

Weight:	5730kg
Crew:	2 men
Engine:	Maybach HL42TRKM / 6-cylinder / 100hp
Speed:	Road: 65km/h Cross-Country: --km/h
Range:	Road: 320km Cross-Country: ---km
Fuel Capacity:	--- litres
Lenght:	4.70m
Width:	1.95m
Height:	1.80m
Armament:	7.92mm MG34
Ammo:	7.92mm - 2010 rounds
Armor:	8-18mm
