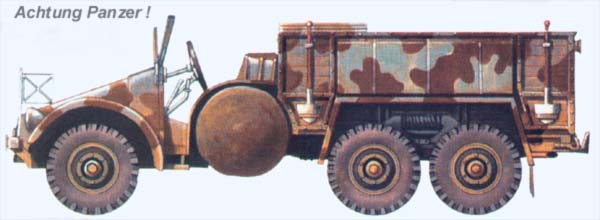

Krupp Protze
Krupp L 2 H 143

Krupp Protze

Krupp Protze

Krupp Protze

  • Kfz.19 - Krupp Protze L 2 H 143 coverted to a telephone truck.
  • Kfz.68 - Krupp Protze L 2 H 143 converted to a radio mast truck.
  • Kfz.69 - standard Krupp Protze L 2 H 143 used as a towing truck for 37mm Pak gun. Some were mounted with the gun.
  • Kfz.70 - standard Krupp Protze L 2 H 143 used as a personel carrier.
  • Kfz.81 - Krupp Protze L 2 H 143 converted to carry ammo for 20mm Flak gun and usualy towing one. Some were mounted with the gun.
  • Kfz.83 - Krupp Protze L 2 H 143 converted to carry a 8-kilowatt generator with cable for a (usually towed) 60cm spotlight.

    Specifications

    Weight:2450kg
    Crew:2 men +
    Engine: Krupp 3.3l Boxer air-cooled / 4-cylinder / 60hp
    Speed:Road: 70km/h
    Cross-Country: --km/h
    Range:Road: 450km
    Cross-Country: 360km
    Fuel Capacity:110 litres
    Lenght:5.10m
    Width:1.93m
    Height:1.96m
    Armament: none
    Ammo:none
    Armor:none
