1.    Banner: 3D-CAD

2.    Definition:  Computer Aided Design. In fields such as engineering and architecture, CAD uses computer graphics to do work that formerly would have been done with pencil and paper. CAD requires a high-resolution monitor and special software.  http://www.computeruser.com/

3.    Examples

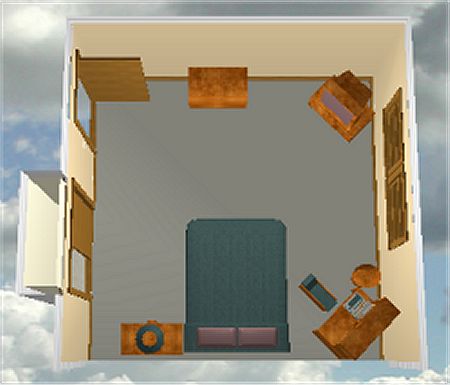

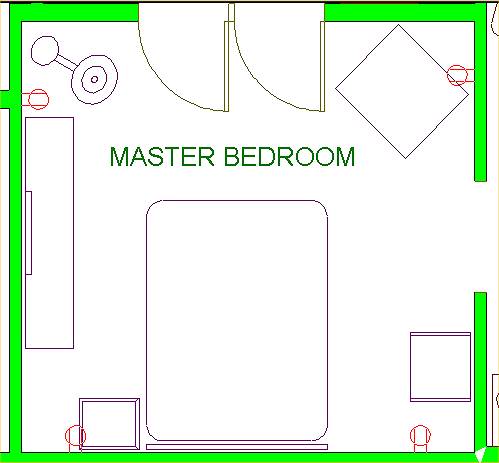

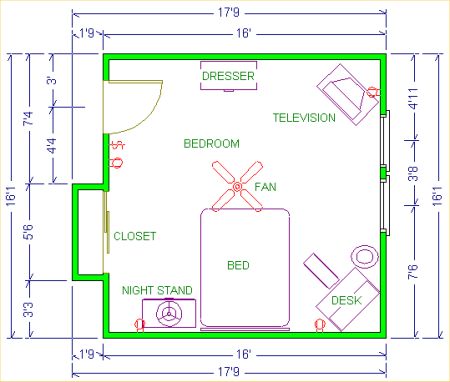

A floor plan of my bedroom: Camera View of my bedroom: Isometric View of my bedroom:

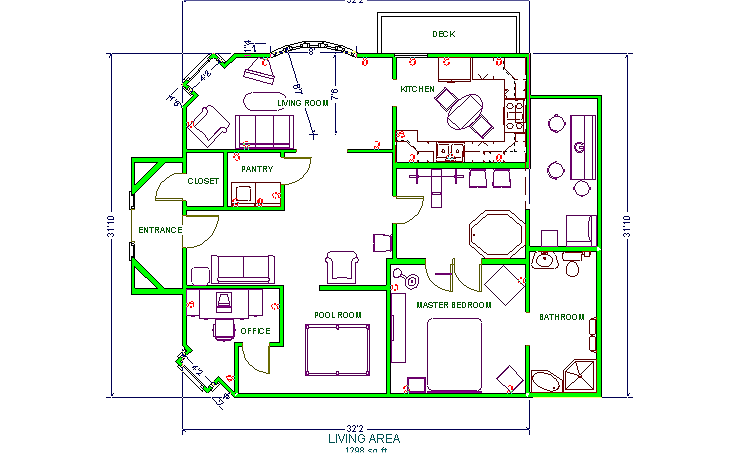

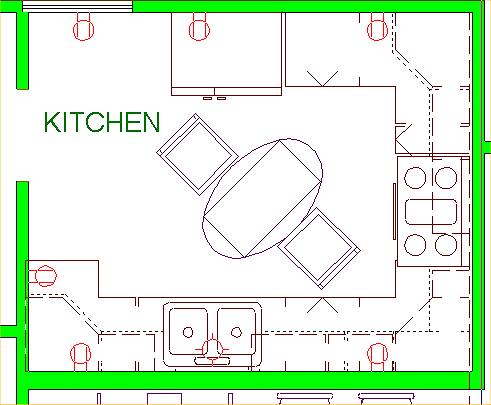

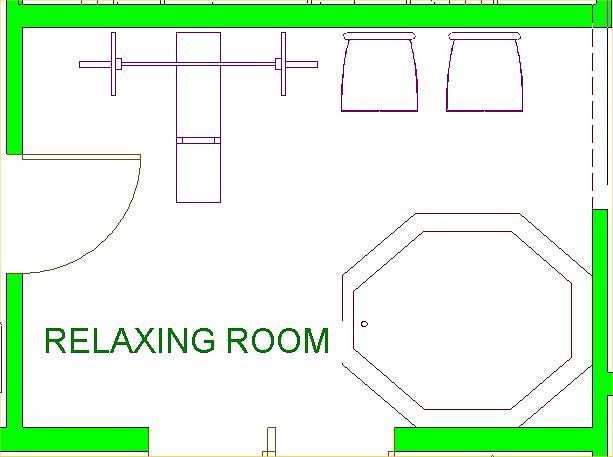

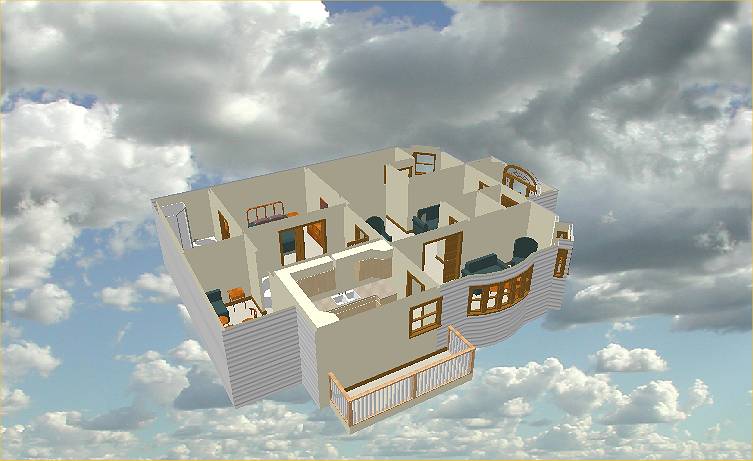

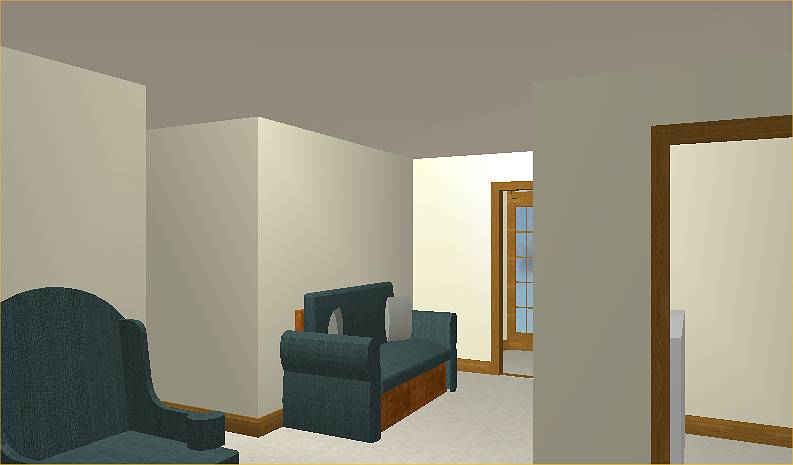

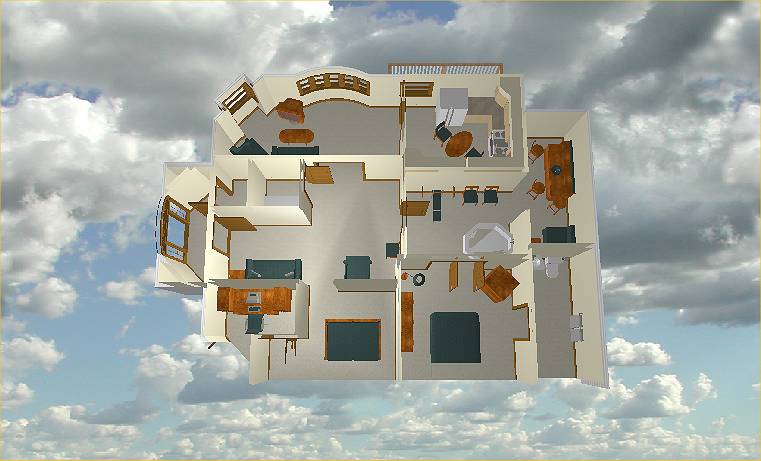

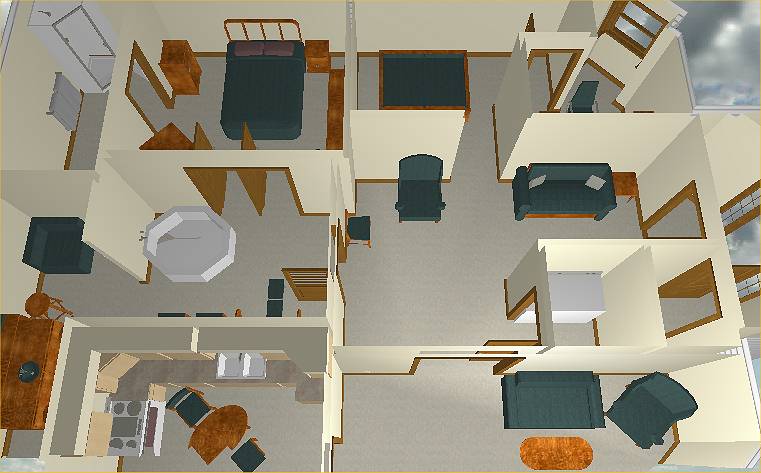

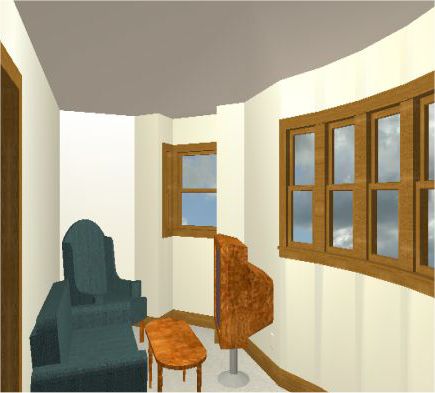

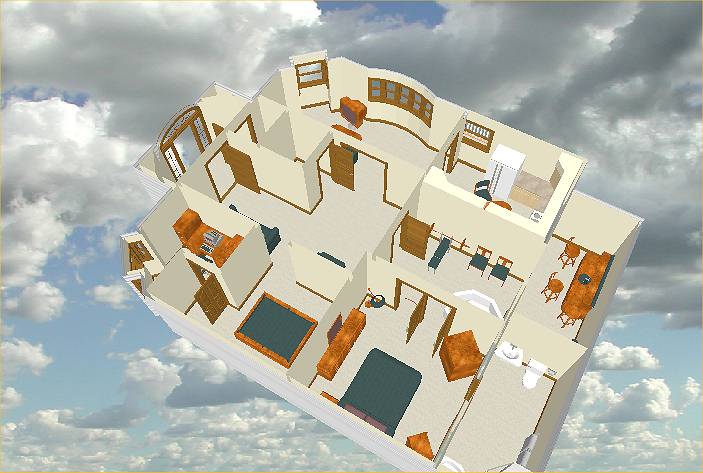

Floor plan of my apartment: Camera View of my apartment:  Isometric View of my apartment:

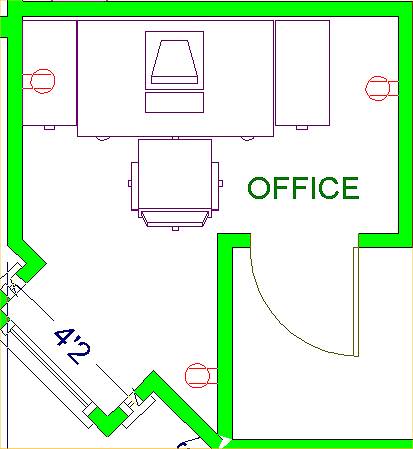

planoffice.jpg (23002 bytes) officeview.jpg (25321 bytes)Office bathroomview.jpg (23050 bytes)Bathroom




4.    Writing: I have three different ways that I went about designing my bedroom.  First was the plan view where I started designing everything.  Then I have a camera view and an isometric view.

5.    Skills:

Screen Capture  Dimensions  Camera views
textures height/width Wall/floor color
Drafting Comp. design Building view

6.    Resources:

       Advanced Relational Technologies

       3d Graphic Design

7.    Tutorials:•

       3 d max training
       Combustion training

8.    Careers:

                Architect

                Web Designer
