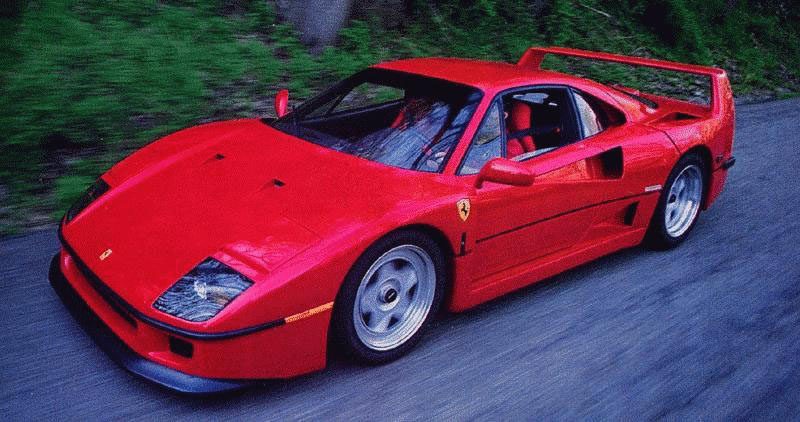

F40
stands for Ferrari
fourty and the car was designed to commemorate the fourty
year aniversary of Ferrari's innauguration.
The innitial pricetag of this car was about 415,000 US
dollars.
Because of this ultra high pricetag only 1,300 of these
cars were produced for retail. The car was manufactured
from 1987 to 1992 and was made of ultra light materials
once only used for racing.
The F40 was a car with a mission. In
1987 Enzo Ferrari was in his 90th year, and celebrating
his 40th anniversary as a car-maker. He was growing frail,
and knew this would be his last major milestone. He could
look back on almost a hundred GP wins, eight Fl world
championships, nine Le Mans wins and thousands of other
victories. With undimmed pride, he planned to crown it all
with the undisputed king of road cars, the fastest Ferrari
of them all. In his own words "the best Ferrari
ever" The F40.
Ferrari, quite magnificently, stage-managed its launch at
the Maranello factory in ]uly 1987. But there was
substance behind the showmanship. The F40 was a genuinely
great car, and it put Ferrari back where he believed he
belonged. For a few months, the bristling-with-technology
Porsche 959 had overtaken Ferrari's 288 GTO as the fastest
road car in the world. The F40 brought the crown back to
Maranello.
When it was introduced it was the fastest road car ever
built, full stop. Its claimed top speed of 201 mph marked
the first time that a road car had bettered 200. The 959
managed 'only' 197. And the F40 would reach 60mph in 3.5
seconds (factory claimed time), where the 959 wanted 3.7.
To argue which was really the better car is meaningless.
The F40 had the headlines.
It was completely unlike Stuttgart's complex
four-wheel-drive supercar. It was essentially simple.
Instead of the 959's electronic control systems, clever
six-speed gearbox, and the luxuries of leather,
air-conditioning and top-level hi-fi, the F40 took the
race car approach of maximum power, minimum weight and
classic rear-wheel drive.
The F40 was developed from the 288 GTO via the 288
Evoluzione. The latest leaps in aerodynamics gave it an
aggressively angular shape (by Pininfarina), dominated by
massive scoops and wings. A new generation of tyres gave
it a low, super-wide stance. Lightweight materials and new
construction methods helped shed a substantial 135kg. Out
went the 288 GTO's surprisingly plush trim and generous
equipment levels in favour of the spartan, stripped-bare
look of the racer. Instead of the 288's ventilated leather
seats it had thinly padded highbacked racing-style shells.
Where the GTO had carpets and suede Alcantara trim, the
F40 had naked Kevlar and carbonfibre. Each skeletal door
weighed just 1.5kg; there were no carpets, electric
windows, central locking, not even proper door handles
just Mini-style cord pulls.
The vehicle weighed in at just 1100kg, while its
twin-turbo V8 had grown to 2.9 litres, and power to 478bhp
- at the time the most ever offered in a road car.
Suspension was race-bred coils and wishbones; the brakes
gigantic 13-inch discs, ventilated and cross-drilled,
nestling in l0-inch wide front and 13-inch wide rear
wheels, with massive Pirelli tyres. It was a racing car in
all but name, with fearsome performance and
take-no-prisoners manners. Even today, it is a superb
tribute to Enzo's memory.
|
General
Statistics
Production
Numbers |
1311 |
Production
Period |
1987
- 1992 |
Chassis
Number Range |
76204
- 95317 |
Body
Style |
2
seater sports coupe |
Construction |
Closed
2 seater (Pininfarina design) - tubular frame -
Composite body and steel chassis (kevlar/nomex
engine cover and other design features) |
Weight
Empty |
1100
kg |
Body
Size |
W :
1970 mm, H : 1124 mm, L : 4400 mm, Wheelbase :
2450mm, tracks : 1594 mm (F), 1606 mm (R) |
Engine
Model |
F120A
90° Light alloy V8 |
Engine
Displacement |
2936cc
- bore 81.9 mm, stroke 69.5 mm |
Compression
Ratio |
7.7
: 1 |
Superchargers |
Twin
IHI RHB 53LW Turbochargers (max boost 1.1 bar)
with 2 Behr Intercoolers |
Ignition |
2
integrated Weber Marelli IAW indirect
injection-ignition systems |
Spark
Plugs |
Champion
G61 (10 mm) |
Cooling |
Forced
water cooling - 2 automatic electric fans - 17
litre circuit |
Lubrication |
Forced
lubrication - dry sump - Savara filter and
radiator - 8 kg circuit |
Clutch |
8.5
inch Borg & Beck dual-disk |
Engine
Power |
478
bhp at 7000 rpm (= 162.8 HP/litre) |
Engine
Torque |
425
lb ft at 4000 rpm (58.8 kgm) |
Transmission |
5
synchronized gears |
Reduction
Ratios |
1st
- 3.45, 2nd - 2.14, 3rd - 1.53, 4th - 1.20, 5th
- 0.95, Reverse - 3.07 |
Final
Drive |
Hypoid
bevel pair, 11/30 (= 2.73) |
Fuel
Capacity |
120
litres in 2 tanks |
Suspension
(Front) |
Independent
suspension - transverse quadrilaterals - coil
springs |
Shock
Absorbers (Front) |
Koni
coaxial with transverse anti-roll bars |
Suspension
(Rear) |
Independent
suspension - transverse quadrilaterals - coil
springs |
Shock
Absorbers (Rear) |
Koni
coaxial with transverse anti-roll bars |
Wheels |
Speedline,
light-alloy, detachable, F : 8J x 17, R : 10J x
17 |
Tyres |
Pirelli
P Zero, F : 245/40 ZR17, R : 335/35 ZR17 |
Brakes |
4
Brembo self-ventilating discs |
Steering |
Rack
and Pinion (steering radius - 11.6 m) |
Electrical
System |
12
volt - 105A Bosch alternator - Ah 60 AC Delco
battery |
Maximum
Speed |
201
mph / 324 kph (Source: Factory Claim) |
Acceleration
(0-30 mph) |
2.2
seconds (Source: Autocar & Motor) |
Acceleration
(0-60 mph) |
4.5
seconds (Source: Autocar & Motor) |
Acceleration
(0-100 mph) |
8.8
seconds (Source: Autocar & Motor) |
|
