How to make a spring

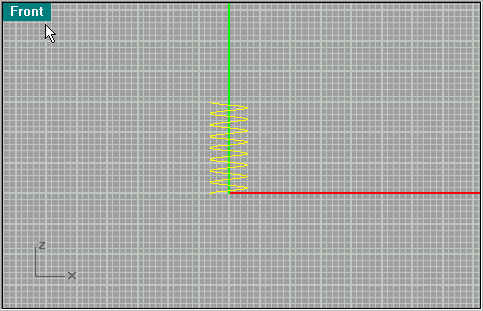

Create a Helix using Curve/Helix command.Use the sample pics to get your perspective as to size. In this case, 15 units high, 3 units radius and 8 turns.

Spring 01.jpg (25467 bytes)

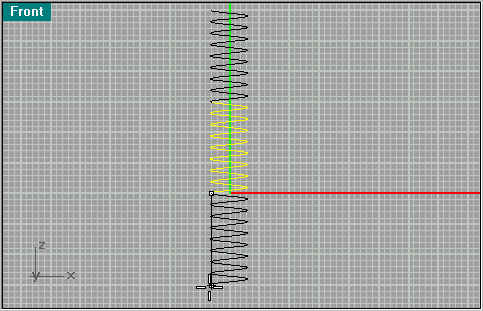

Next use the "copy" command to duplicate the springs and line them on top of each other.

Spring 01a.jpg (26071 bytes) Spring 01b.jpg (26634 bytes)

Now compress the top and bottom spring using Transform/Scale/Scale 1-D. Then join the 3 segments into one.

Spring 02.jpg (26865 bytes) Spring 03.jpg (26011 bytes)

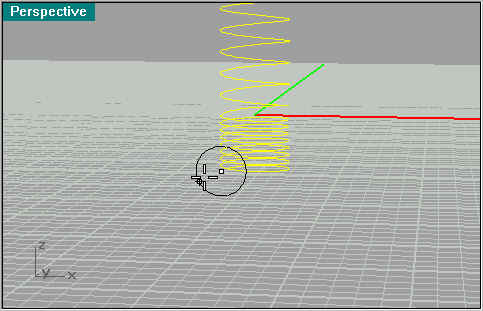

Next use the Pipe command by using Solid/Pipe. Use .2 units as a radius for this sample on both ends.

Spring 05.jpg (21178 bytes) Spring 06.jpg (27126 bytes)

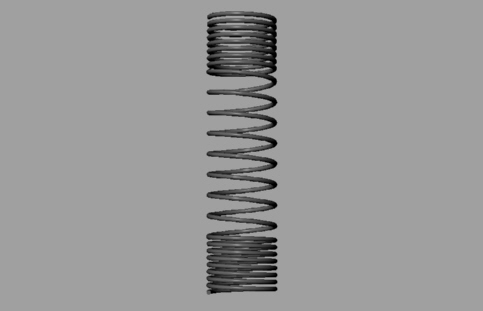

That's it. The pipe may be in 3 segments so just join it and you have a complete spring.

Spring 07.jpg (16519 bytes) Spring Final.jpg (17471 bytes)
