SWIRLJET NOZZLE ARRAY
- Higher nozzle flow - fewer nozzles required
- 90% droplets mass is less than 20 microns see Swirljet Nozzle table
- Smaller droplets - better evaporation
- Durable design - no impaction pin
- Safety lock wired to the manifold using aircraft industry standard locking methods
- Nozzle adapters are attached to seamless 316L stainless steel tubing via a full penetration TIG weld in accordance with ANSI-B31.1 standards
- Provides increased reliability, less maintenance, and longer service life
|
|
|

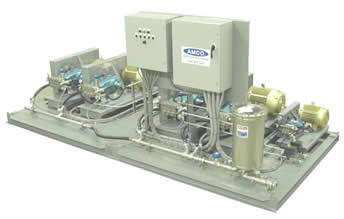

HIGH PRESSURE PUMP SKID
- Heavy duty, premium TEFC electric motors
- Ceramic plunger pumps with stainless steel heads
- High efficiency water filter
- Motor control center
- System control
- Individual zones (pumps) provide for multiple stages, allowing for cooling 1° F increments
- Engineered to meet or exceed industry standards
- All piping and welding to ANSI B31.1 standards
- All 316L stainless steel construction
|
|

|
