Fleet Locator-Budgetary Quotation
> Productshomepage >
Fleet Locator-Budgetary Quotation
(PL
DOWNLOAD
THE SAME DOCUMENT(116 KB) WITH MAPS IN PDF )
The Fleet locator consist have a Control Station and number of Mobile Units. This quotation is for one control station and one mobile unit.
 |
|
| Vhf Radio | Radio Modem with GPS |
A. Details of the
Hardware in the Mobile Unit
- 1 no.
|
Sl. No |
Hardware Name |
Qty |
Price (USD) |
Usage |
|
1 |
RF Remote unit (With GPS & Radio Modem) |
1 |
$ 500 |
For getting location data using GPS and transmitting to base station. |
|
2 |
VHF Radio Set |
1 |
$ 500 |
For communication |
|
3 |
12 V battery (capacity 24 hrs) |
1 |
$ 200 |
For Standalone operation, where NO DC power is available. With charging facility & 12 V Ext power jack |
|
Total |
$ 1200 |
|
||
B. Details
of the Hardware in the Control Station – 1 no.
|
Sl. No |
Hardware Name |
Qty |
Price (USD) |
Usage |
|
1 |
RF base unit (Radio Modem without GPS) |
1 |
$ 400 |
For communication between Control Station (PC) and RF remote unit. |
|
2 |
Radio Set |
1 |
$ 500 |
For communication |
|
3 |
Tracking Software |
1 |
$ 2000 |
Full featured GPS/GIS tracking software |
|
4 |
P-IV PC (Compaq) |
1 |
$ 1100 |
|
|
Total |
$ 4000 |
|
||
Installation charges: Qualified system integrators can do themselves.
Description |
Control station
|
|
1.
VHF Radio Unit |
|
2.
Radio modem |
|
3.
PC |
|
4.
Mapping & Tracking software |
Mobile Unit
|
|
1.
VHF Radio unit |
|
2.
Radio Modem |
|
3.
GPS |
|
4.
GPS Antenna (external) |
|

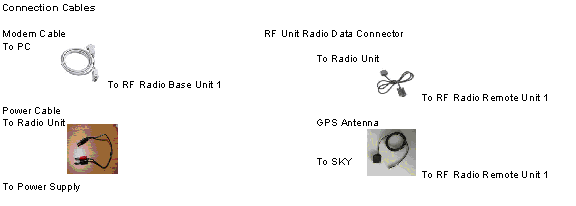

5.
Power Cable for Radio Unit |
|
6.
RF Unit Radio Data Connector |
|
7.
RF Antenna |
|
8.
PTT |
|
9.
Modem Cable |

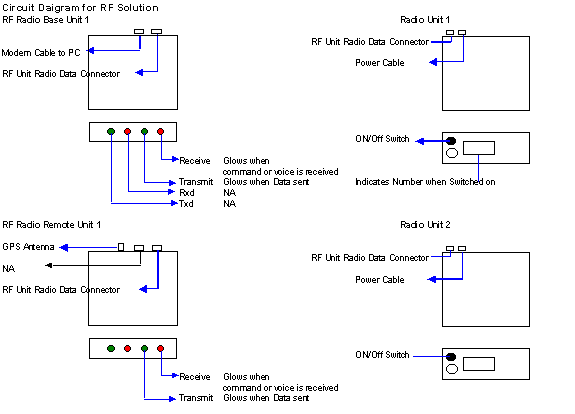

RF Solution hardware specification
VHF Radio Unit |
|
|
|
|
|
VHF |
UHF |
|
|
Frequency |
136-162
MHZ |
403-433
Mhz |
|
|
|
146-174
MHZ |
438-470
Mhz |
|
|
|
|
465-495
Mhz |
|
|
|
|
490-520
Mhz |
|
|
Channels |
8,16 |
|
|
|
Power
Output |
10-25
W |
10-25
W |
|
|
|
45
W |
25-40
W |
|
|
|
|
25-35
W |
|
|
Channel
Spacing |
20/25/30
Khz |
20/25
Khz |
|
|
|
12.5
Khz |
12.5
Khz |
|
|
Audio
output |
3
W @ less than 5% distortion |
||
|
|
|
|
|
Radio Modem
|
|
|
|
|
|
Modulation |
Fast
frequency shift keying |
|
|
|
|
Data
rate |
Modulation
2400 Bauds |
|
|
|
|
|
User
Interface 2400 Bauds to 19.2 Kbps |
|||
|
Com
port setting |
No
parity Databits 8 Stopbits 1 |
|
||
|
Flow
Control |
Hardware
flow control |
|
|
|
|
Interface |
RS232 |
|
|
|
|
Two
way communication |
|
|
|
|
GPS Receiver
(on board)
|
|
|
|
|
12 Channel GPS receiver
|
|
|
|
|
|
Interface |
RS232 |
|
|
|
|
Two
way communication |
|
|
|
|
 |
 |
