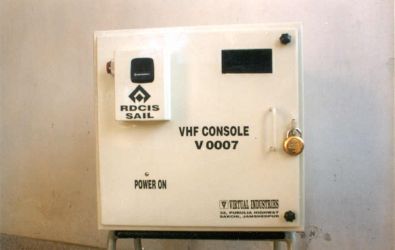

VHF Fixed Station

The device runs on 230 V, 50/60 Hz, AC and can be mounted on any electrically operated industrial equipment like cranes, locomotives, raw material handling equipment etc. It essentially consist of a VHF radio a power supply and accessory port for additional operation like dtmf signaling, remote relay, data link etc.



 $ 1000

 Communication needs in any Industry are found to be distinctively different from one another. It is solely dependent on process route and operating practices, often overlooked leading to poor network utilization.

A VHF Radio, being a Microprocessor driven system, can be programmed in a Hundred ways. Mere tuning the frequency in all the radios, will lead to fish market type of noisy and unwanted communication making the users unhappy.

Some Important features in code plug programming are

a)   PL/DPL coding

b)   SCAN Mode

c)   Battery health indicator

Some typical applications of VHF radios in Industrial applications:

a)   Cranes & electric cars - Use VHF mobile with DC 12V Linear power supply. Do NOT use SMPS in moving cars, as vibration tends to fail SMPC power supply.

b)   Diesel Locomotives - Use with DC-DC converter power    supply. (Typical Input -75V Dc,    Output - 12V, 10A, Dc)

c)   Ground plane omni directional unity gain Antenna gives the best price/performance ratio.

Telephone connectivity to VHF wireless network can be done through telephone patch, but it has got serious limitations. To have more flexibility with telephone like features, use Radio Trunking for mobile-mobile, mobile-landline and landline to mobile connections.

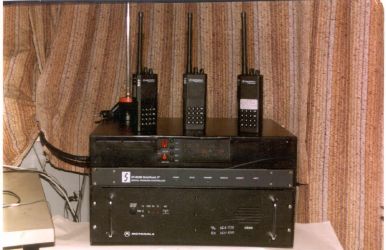

Single channel Radio trunking system  Consists of one VHF repeater and one Trunking controller - $ 2000





$ 2000
VHF Fixed unit with DTMF signaling facility

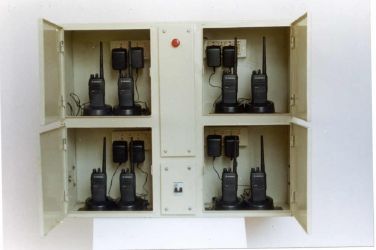

Auto Cut off Chargers

( 8 charger Module)

The Charger are used to charge the VHF sets in controlled conditions. The charger has got auto cut timers which senses and cuts down the charging current when the batteries become full charged, prolonging the life of battery



$ 500



$20
VHF Antenna is a important part of the network for maximizing range. Antennas should be tuned and VSWR measured for maximum range
