Imperial Japanese Naval Midget Submarine PAGE

2000 / 11 / 1.

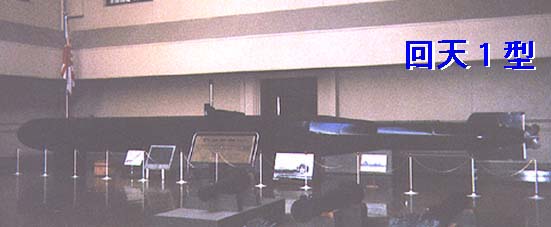

"Kaiten" Type1 Suicide Attack Midget Submarine Length : 14.75m Diameter : 1m All-Up Weight : 8.3t Main Engine : Torpedo Motor X 1 Fuel : Oxigen (196 Iittle) Max Speed : 30kt Range : 23.0Km Crew : 1 Warhead : 1,550Kg warhead

"Kairyu" Midget Submarine Length : 17.28m Width : 3.45m Diameter : 1.30m All-Up Weight : 23.5 Main Engine : Diesel (80hp) X 1, Single Shaft Fuel : Diesel Oil (1,070 Iittle) Max Speed : 6.5kt (On the Sea) / 10.0kt (In the Sea) Range : 724Km (at 5kt : On the Sea) / 60Km (at 3kt : In the Sea) Safty Depth : 150m (without torpedos) Crew : 2 Armament : 450mm Torpido Tube X 2 (outside shipboard) or 500Kg Warhead.
