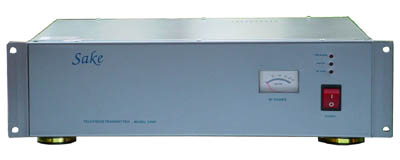

กำลังส่ง 30 วัตต์

Frequency Range Frequency Stability Visual Intermediate Frequency Aural Intermediate Frequency I.F. Corrector Visual Output Level I.F. Corrector Aural Output Level RF Power Output Spurious/Harmonics Signals Level Intermodulation Level RF Output Impedance Audio Input Level Audio Frequency Response Audio Pre-emphasis Aural IF Deviation Audio Harmonic Distortion Video Input Level Video Frequency Response Video Noise Level Mains Power Supply RF Power Supply Mounting Working Temperatures Range Dimensions Weight

UHF (471.25 – 519.25 MHz) FIX CHANNEL 250 KHz (In the rang -10 to +45 C) CCIR Standards B/G : 38.90 MHz CCIR Standards B/G : 34.40 MHz -15 dBm. -25 dBm. 30 W better than -60 dBc. better than -52 dBc. 50 Ohm 1 Vp-p / 600 Ohm / Adjustable 20 Hz - 15 KHz 50 uses. +/-25 KHz <0.5 % 1 Vp-p / 75 Ohm / Adjustable 20 Hz - 6 MHz <-60 dB 220 VAC 12.5 VDC 8A Rack 19" -10 to 45 C 120 x 430 x 300 mm. 8.5 Kgs.

สอบถามข้อมูลเพิ่มเติม
085-163 8810 วงศ์
