Class 10 Electric Loco


The class 10E series is a fairly common loco, along with the 6E derivatives.  Three different sub types of the 10E is used (10E, 10E1, 10E2). As far as I am aware most of the changes were motor and gear related, there are few external visible distinctions, apart from the pantographs and the cab roof that is very slightly different.  The class 10Es are all 3000V DC locos.  Following is a little comparison of the different types, and series.


Loco Series
Tractive Force
Motor and Gears
Class
Series
Loco Numbers
Year in Service
Starting
One Hour
Continuous
Total Motor Rating (qty)
Gear Ratio
Max. Speed
10E
1
E10001-E10050
1985-1986
450kN
335kN
310kN@35km/h
3240kW (6)
19/92
90km/h
10E1
1
E10051-E10100
1987-1989
450kN
335kN
310kN@35km/h
3240kW (6)
17/87
90km/h
10E1
2
E10126-E10175
1990-1992
450kN
335kN
310kN@35km/h
3240kW (6)
17/87
90km/h
10E2
1
E10101-E10125
1989-1990
450kN
335kN
310kN@35km/h
3510kW (6)
19/92
100km/h


Left click for Larger Image 10E 10035, photographed at Klerksdorp, December 2002.

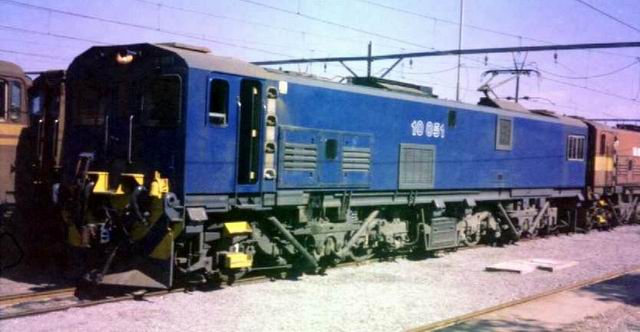

Left click for larger image 10E1 10051, photographed at Phalaborwa, September 2001.

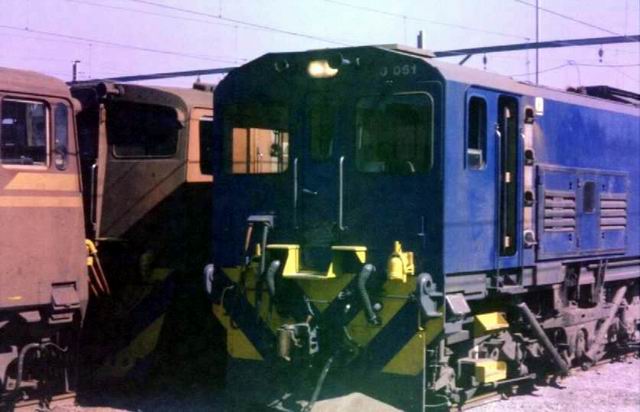

Left click for larger image 10E1 10051, photographed at Phalaborwa, September 2001.

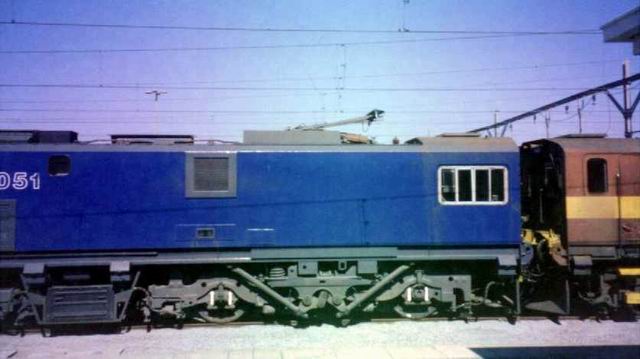

Left click for larger image 10E1 10051, photographed at Phalaborwa, September 2001.

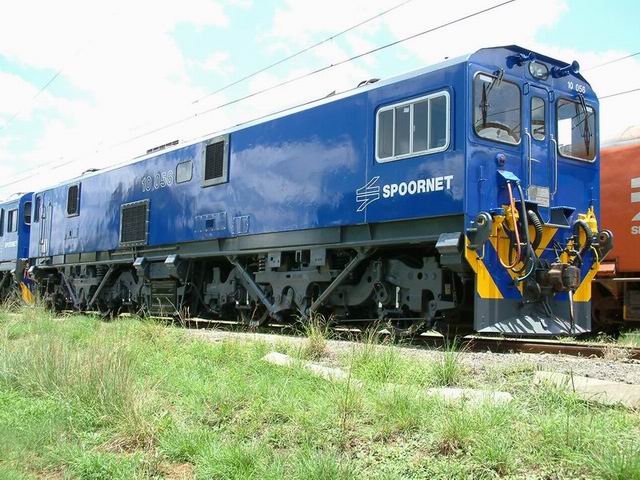

Left click for Larger Image 10E1 10056, photographed at Pyramid South, December 2002.
Left click for Larger Image 10E1 10056, photographed at Pyramid South, December 2002.

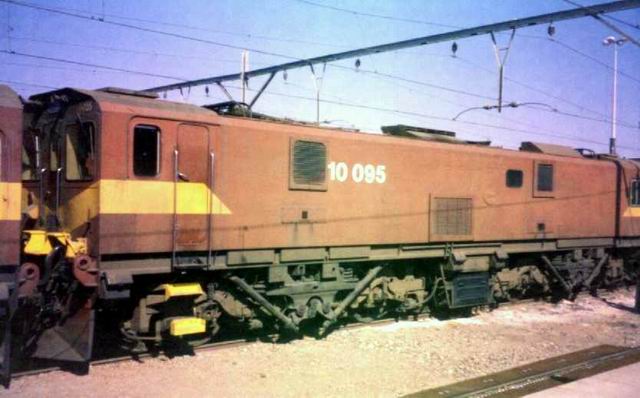

Left click for larger image 10E1 10095, photographed at Phalaborwa, September 2001.

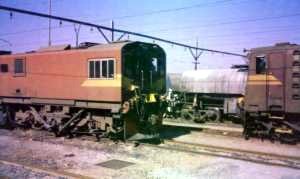

Left click for Larger Image 10E1 10097, photographed at Phalaborwa, September 2001.  Notice the phosphoric acid tankers in the background.  Keep a lookout for the goods wagons pages for photos of them.
Left click for Larger Image 10E1 10097, photographed at Phalaborwa, September 2001.
