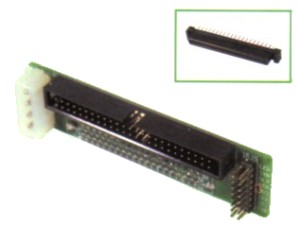

ITEM NO:
GR80A01
SCA 80 F to Power
(4P) & Data(Box Header 50P) & ID (Pin Header 16P), Dim: 97mm
* 26mm
|

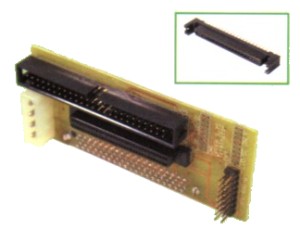

ITEM NO:GR80A02-B(U160)
/GR80A02-C(U320)
U160 SCA2 Low Profile 80 F to
Power (4P)& Data (HPD 68P F) & ID (Pin Header 16P), LVD or
smaller typeavailable. Support Hot-Swap, Dim: 97mm*26mm, 2
layer PCB.
GR80A02-C:
U320 rating(4 layer PCB) |

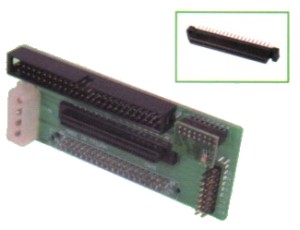

ITEM NO:
GS80A-01-NL
HPC 80F+HPD68F+BH50M
with 9 lines Negation Terminator.
Dim:97mm*40mm Remarks:
R80A04+S16A01-NL
|
|
Internal U320
Amphenol cables: |
|
HPD68M*4
Connectors, Spacing: 543/112/25cm, L:68cm
HPD68M*5
Connectors, Spacing: 540/135/110/25cm, L:81cm
HPD68M*7
Connectors, Spacing: 540/135*3/110/25cm, L:108cm
HPD68M*9
Connectors, Spacing: 540/135*5/110/30cm, L:135cm
Other length upon request.
With
Terminators:
HPD68M*4
Connectors, Spacing: 408/135/112/25cm, L:68cm
HPD68M*5
Connectors, Spacing: 408/135*2/110/25cm, L:81cm
HPD68M*7
Connectors, Spacing: 405/135*4/110/25cm, L:108cm
HPD68M*9
Connectors, Spacing: 405/135*6/110/25cm, L:135cm
|
|
|
|

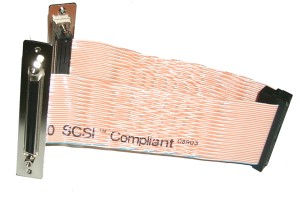

U320
Enclosure Cable, Amphenol cable |
|
HPD68F*2
(Bracket*2, Screw*4),
HPD68M*1, 27 cm,
Spacing: 135mm/135mm
HPD68M*2,
68 cm, Spacing: 273/135mm/272mm
HPD68M*4,
121.5 cm, Spacing: 408mm/135*3/407mm
HPD68M*9,
230 cm, Spacing: 543/135*8/677mm
|
|
|
|

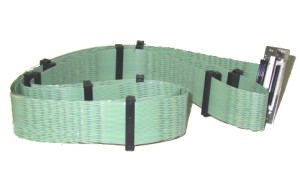

U320
Enclosure Cable, Hitachi cable |
|
HPD68F*2
(Bracket*2, Screw*4),
HPD68M*1,
26.6 cm, Spacing: 133mm/133mm
HPD68M*2,
67 cm, Spacing: 269/133mm/268mm
HPD68M*4,
120 cm, Spacing: 401mm/133*3/400mm
HPD68M*9,
226 cm, Spacing: 532/133*8/664mm
|
|
|
|
|

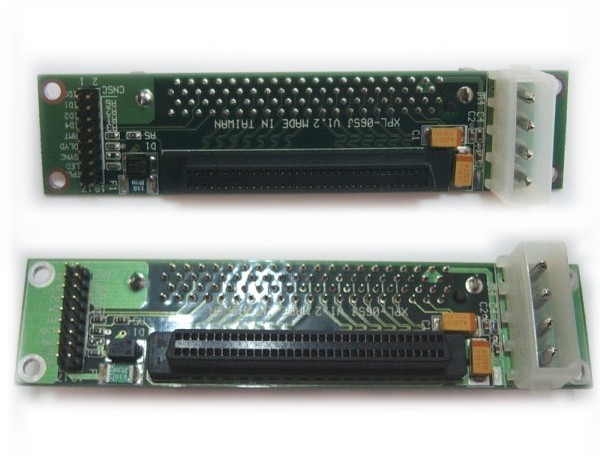

ITEM NO:
GR80A02-B-B
SCA2 Low Profile 80 F to Power
(4P)& Data (HPD 68P F) & ID (Pin Header 16P), LVDavailable,
Dim: 100mm * 23mm * 1.6mm
U320 rating + single backplane 4 layer PCB.
Superior quality SCA
adpater, Highly
Recommended
|
|
