Note : AJD610WA will be replaced by AJD610WB, click here to check

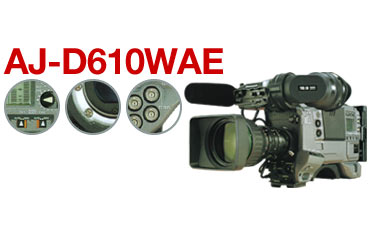

AJ-D610WAE

2/3" IT-3CCD DVCPRO Camera/Recorder (PAL)

Panasonic is the brand name  of Matsushita Electric. Made in Japan. Panasonic DVCPRO AJD610WAE can be shipped from Singapore.

Professional Pal User ,Re-seller or Importer please e-mail us

Where to buy | Purchase |Who sell |DVCPRO50 |




The AJ-D610WA combines a high-sensitivity 2/3'' IT 3-CCD with DVCPRO's digital component system. It accepts a wide variety of 2/3" lenses and is switchable between 16:9 and 4:3 aspect ratios, making it ideal for broadcasting and professional needs.
Key Features:
  • 2 / 3" IT - 3CCD DVCPRO CAMERA / RECORDER
  • Three 2/3" 600,000 pixel IT CCD image sensors
  • Horizontal resolution of 750 lines at 16:9 aspect ratio
  • Digital menu controlled camera set-up
  • Stable, reliable picture quality through digital signal processing
  • Automatic white/black balance
  • 6 step electronic shutter (1/100, 1/120, 1/250, 1/500, 1/1000, 1/2000 sec.)
  • Synchro-scan for flicker free recording from data monitors
  • Built-in gen-lock function
  • Digital component recording giving 5.75 MHz bandwidth
  • Built-in EBU/SMPTE time code generator/reader (VITC/user bits)
  • Full colour playback without adaptor
  • Built-in monitor speaker
General Specifications:  AJD610WAE

Power Requirements: 12 V (11 - 17 V)
Power Consumption: 24 W
Weight: App. 6 kg (fully operational)





Standard Accessories:


Tripod adaptor
Shoulder strap
Built-in microphone
Anton/ Bauer Gold Mount plate(Installed)
User’s manual

Optional Accessories :
AJ-B75:      AC adaptor
AJ-EC2:      Camera remote control
AJ-MH700:  Microphone holder
AJ-VF10:    1.5" viewfinder (standard)
AJ-VF15:    1.5" viewfinder (high grade)
AJ-VF20W: 2" viewfinder (16:9/4:3)
AJ-VF53:    5" studio viewfinder
AJ-YA700:  26-pin VTR connection
AJ-YA710:  Time code I/O and return video
AJ-YA711:  Interface for WV-VF65
AJ-YA900:  26-pin VTR multi-connector
AJ-YAP900:        Picture Link board including 4 MB PCMCIA card
SHAN-B700:       Flight case
SHAN-C12TCA:  Time code and audio cable
SHAN-RC700:    Rain cover
SHL-064HSRVS: PCMCIA memory card (64 KB)
SHL-QVF5D700: Mounting adaptor for WV-VF65 studio viewfinder
WM-L30: 	         RAMSA condensor microphone
WV-VF65:          5" studio viewfinder
