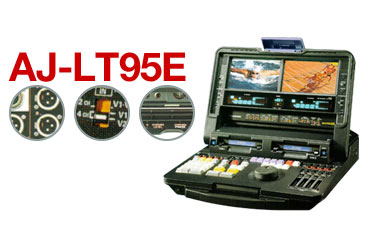

AJ-LT95

DVCPRO50 Laptop Editor                   (625/525 Switchable)

Panasonic

Where to buy | Purchase |Who sell |

AJLT95E A laptop editing suite for high-end production uses the DVCPRO50 format to edit 4:2:2 component video images and 4 channel audio for superior on-site editing.

• DVCPRO50 LAPTOP EDITOR
• A single compact package featuring dual DVCPRO50 digital VTRs, two 7" LCD monitors, speakers, and an editing controller.
• Portable (424 x 120 x 435 mm) and lightweight (12.9 kg) design
• 4:2:2 digital component video recording and playback.
• 4-Channel digital audio with fader.
• DVCPRO50/DVCPRO25 switchable recording.
• Edits and play back the 525 video signals used in the NTSC broadcast system.
• Two wide-screen (16:9) 7-inch LCD monitors allows you to play back and edit material recorded on 16:9 camcorders.
• Use VTR1 as a player and VTR2 as a recorder for quick, easy assemble and insert editing up to 200 events.
• Equipped with the same numeric keypad as a studio editor.
• EDL Data display on the monitor for easy checking during multi-event editing.
• Audio Dubbing, Split and "Swap" Editing
• Built-in EBU time code generator and reader.
• A search dial for forward or reverse searching at up to 32 times normal speed, adjustable in 23 steps.
• One set of serial digital (EBU Tech.3267-E) input* and output* terminals. * Input for VTR2 only, Output for VTR1/VTR2 switchable. No input for 525 mode.
• A variety of analogue inputs and outputs.
• Control of an extra VTR via RS-422A(9-pin) interface.
• Time code input and output for synchronized recording.
• EDL terminal for uploading and downloading.

CONNECTIONS:
Serial digital I/O (BNC)
Analogue component signal (BNC
Analogue composite signal (BNC)
Video monitor out (BNC)
Analogue audio (XLR)
Audio monitor (XLR)
Reference signal (BNC)
Time code in/out (BNC)
RS-422A machine control
RS-232C interface
Headphones

Power Requirements: 12 V
Power Consumption: 75 W
Dimensions (WxHxD): 424 x 120 x 435 mm
Weight: 12.9 kg

Accessories:

User’s manual
Special tool (emergency eject)

AJ-B95 AC adaptor
AJ-SC75: Nylon soft bag
