LSVTEC Pics

I finally built my lsvtec motor.  I started with a 90 b18a block which i got almost for free.  Got a b16a head for dirt cheap.  Traded a integra chassis for some forged SRP high compression pistons.  Shotpeened, polished and balanced the stock ls rods and installed ARP rod bolts.  Smoothed out the b16a head and had portflow do a 3 angle valve job and install their spring and retainer package.  Micro polished the crank for free from my friend.  traded some integra seats for some AEM cam gears.  PNUT lent me his old gsr cams.  Installed all new bearings, new gsr oil and water pumps.  And if this still isn't fast i'm going to nitrous it.

here are some pics of the build up.

Shotpeened rods and SRP pistons ready to go.

Lo buck Smoothed head

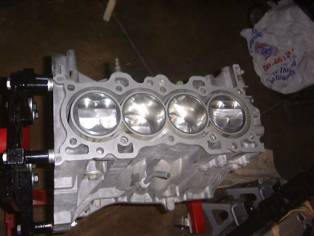

Pistons are in.

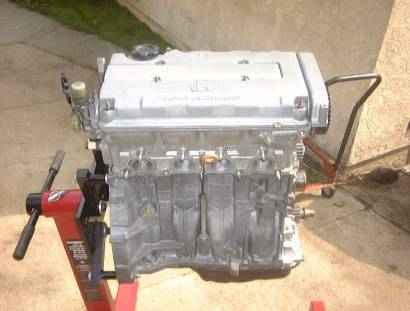

Finished product on LSVTEC motor.

Some Web site to check out if you want to build your motor.

Endyn Energy Dynamics  http://www.theoldone.com/

Motor, Piston, Had porting tips.

Davekim list of posts  http://www.ee.ucla.edu/~davekim/lsvtec/

Big list of posts with info about tips and questions

thelsvtec http://www.oocities.org/thelsvtec/

Info from how to do it to links to oil lines.

LSVTEC INFO http://www.oocities.org/whiterabbit_59/lsvtec/lsr.html#External

Info about lines, compression ratios, etc.

ARP Automotive Racing Products http://www.arp-bolts.com

Rod bolts and head studs.  I over torque mine by mistake and they said they were still good to re-torque.

26 lbs for the 8 mm bolts part number 208-6001.

Portflow design http://www.portflow.com/

Head Porting, valve springs and retainers
