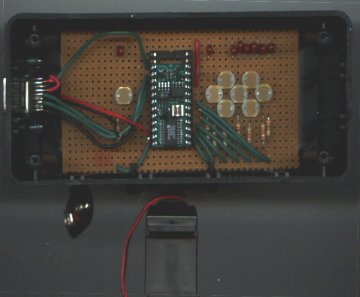

This is a view with the lenses removed. You can see the Basic Stamp II in the center. The CdS cells are arranged in the pattern of a real eye. The right side is for visual interpretation, and the left eye is used for range finding using the parallax effect. | |

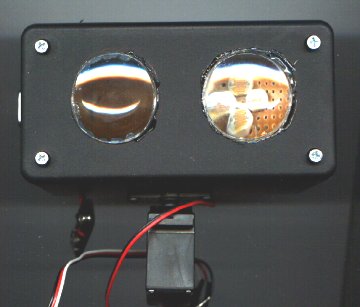

This is the front view of the low resolution vision system, originally concepted by Kevin Ross of SRS. I adapted it to the Basic Stamp II. It follows movement 2 feet away. Eventually, I will mount a servo which will move the head up and down to complement the side to side movement. |
