MasterView KVM Switch Model: CS-104 |
4-port CPU Switch with PS/2 and AT keyboard support. Cascade units to
support up to 64 attached PCs with one console set (keyboard, mouse
and monitor). MasterView is Class B certified for use in residential
and commercial areas.
|
|

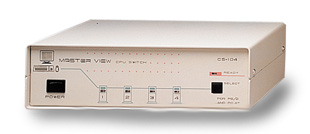

CS-104 Front View |
|
|

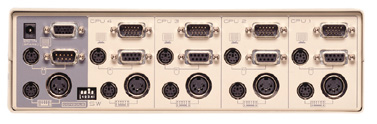

CS-104 Rear View |
|
|
Features |
- One keyboard controls connected PCs with PC/AT or PS/2 keyboard
compatible.
- Easy PC selection via simple keyboard strokes or push button.
- Keyboard Caps Lock, Num Lock, Scroll Lock states are automatically
saved and restored when switching among computers.
- Quick LAST / NEXT mode allows user to toggle through the ports
without leaving the keyboard.
- Three levels daisy chainable to access up to 64 computers.
- Auto Scan mode automatically switches through powered computers.
- Computers connect to MasterView using standard cables.
- Saves space, power and equipment costs.
- LEDs give current mode status.
|
|
Price and Features |
| Function |
Specifications |
| Retail Price |
$329 |
| ConnectPRO Direct Price |
$269 |
| Power Consumption |
DC 9V 250 |
| Access No. of PCs |
4 |
| PC Selection |
Keyboard / Button / Foot Switch |
| Keyboard Emulation |
PS/2 and PC/AT |
| Mouse Emulation |
PS/2 and Serial Mouse |
| LEDs |
4 Manual / 4 Port Status |
| Video / VGA Band Width (-3db) MHz |
100 MHz |
| Max VGA Resolution / Vertical Freq. MHz |
1024 x 768 / 80 |
| Console Keyboard Connector |
5-pin DIN Female, 6-pin mini DIN Female |
| Console Mouse Connector |
6-pin mini DIN Female, 9-pin D Type Male |
| VGA Connector Port |
15-pin HDB Type Male |
| Enclosure |
Metal |
| Weight |
2800g or 7.5 pounds |
| Dimensions (L x W x H) |
254 x 180 x 82 (mm) |
| Master Carton |
5 units in one box |
| Scan Interval |
3, 10, 20, 40 seconds |
| Optional Power Adapter |
230AC, Europe Plug |
| Standard Power Adapter |
120AC, US standard |
| Note: specifications
and prices are subject to change without notice. |
| |
