The localization of a mobile robot is extremely useful in any problem where we need to know the robot’s position for navigation. Most mobile robots need three basic components to operate correctly; a representation of their environment, a method for navigating in the environment, and a method for determining its position in the environment. This paper is concerned only in the estimation of the robot’s position.

A naïve approach to this problem is to use odometers to measure the displacement of the robot. This approach, known as dead reckoning, is subject to errors due to external factors beyond the robot’s control, such as wheel slippage, or collision. More importantly, dead reckoning errors increase without bound unless the robot employs sensor feedback in order to recalibrate its position estimate [8].

An important issue in robot localization is obtaining domain independence. Other solutions use stored maps to navigate. In this work the robot has no previous knowledge of the domain, and creates its own map based on learned landmarks. This allows the robot to operate in any environment.

The basis of this work is to detect suitable features from a pair of stereo images. This is done automatically by the robot instead of needing a human operator to choose features as reported in [11], [9], [6]. The ability to detect suitable features allows the robot to handle real world applications including exploration.

Applications of this type of localization include exploration of new terrain. The success of the Mars Pathfinder mission has shown the possibility of sending unmanned robot’s to explore and map distant planets. The development of autonomous vehicles will definitely be a significant factor of many types of exploration, especially where working conditions are hazardous to human health.



1. Vehicle Geometry and Kinematics





The Robot used in this work, shown in Figure 1, has six wheels: four run freely on a fixed transverse axis on each corner, while the two center wheels are motor driven. A high performance four-axis active stereo head (see Figure 2) is mounted with its horizontal tilt axis parallel to the floor, see Figure 4. The fiduciary head center is defined to lie where the pan axis intersects the horizontal plane containing the tilt axis. This point, fixed relative to the vehicle regardless of head movements, is used to define the vehicle’s location relative to a world coordinate frame, as seen in Figure 3.







(a) (b)

Figure 1. (a) Photo of the TRC Labmate platform. (b) Robot’s Differential-drive.



The robot is assumed to always move on the xz ground-plane. Its position and orientation are specified by the coordinates (x, z, f). The robot-centered frame has its origin on the ground plane directly under the head center, with its z-axis pointing to the front of the robot, x-axis to the right, and y-axis downwards.





(a) (b)



Figure 2: (a) TRC Bisight head. (b) Geometry of the active head. P goes vertically through the pan axis and T goes horizontally through the elevation axis.













(a) (b)



Figure 3. (a) Photo of the robot, showing the mobile platform and the head. (b) The vehicle’s location in the world coordinate frame is specified with the coordinates (x, z, f). The R coordinate frame is carried with the vehicle.



(a) (b)



Figure 4. Mobile Platform configuration. (a) Top-view showing the position of the stereo head. (b) Robot’s side-view. All dimensions are in centimeters.

2. Head Geometry

The Robot consists of the TRC Labmate platform, on which the Bisight head was mounted. Two Pulnix cameras were placed on the head to capture images. The visual processing and localization are implemented in C++ on two PCs. One PC hosts a frame grabber for stereo image capture and sends commands through a communications port to the TRC Labmate Platform. The second PC uses two communications ports to control the Bisight, PTV system.



1. Approach





The robot begins by taking a pair of stereo snapshots at its starting position. Suitable features are detected in an image using the algorithm developed by Stan Birchfield in [10], based on Kanade-Lucas-Tomasi. This algorithm will be referred to as KLT from this point forward. The KLT algorithm effectively detects features. Not all the features detected will be suitable for tracking. No attempt is made to distinguish between these at the initial stage, but they can be rejected later since they will not be tracked under the constraints of the filter.

It then attempts to find 25 features in both images and stores them. Once they are stored, it proceeds to match features from the left image to the right image (stereo match). The procedure to stereo match features will be described later, now we’ll focus on the general operation of the robot. The stereo matched features are stored and then used to locate their 3D position in the robot’s coordinate frame. These are added to the robot’s map. With this information, the robot can calculate its position and compare it with its odometry reading. At this point the robot moves to a new position and captures a new pair of stereo images, using the left image to track features its previous position. If some features are not successfully tracked to the next image, it replaces the lost features with new ones. The tracked and replaced features are used to stereo match the current image pair after finding 25 suitable features in the right image. Then the procedure repeats with the addition of updating the map with the replaced features. These are added to the map once they are referenced to the fixed world coordinate frame. The whole procedure is shown in Figure 5.



2. Stereo Match Algorithm





To determine which right features corresponds to its left counterpart, it is necessary to calculate the epipolar line in the right image corresponding to each left feature [7]. First the algorithm reads the list of features detected for each image. The list of features provides the coordinates (x_L,y_L) of each feature in the image saved on disk. Therefore they must be converted to camera pixels, since the size of the image captured by the camera is 752´ 582 pixels and the size of the image saved on disk, and used to detect features is 384´ 288.

In order to make a good stereo match a prediction of the disparity from left to right image is used. This is approximation is determined with the distance moved by the robot. This value can be obtained from the robot’s odometry.

Then for each feature in the left image the distance from each right feature to the epipolar line is calculated. The list of feature distance is sorted in ascending order and then the features, which are further than an acceptable distance, filtered out. After a bit of experimentation the value of 20 was found to be sufficient. At that moment the distance between the left feature and the candidates in the right image is calculated. Next the feature with the lowest value of disparity but near a small range around the predicted disparity is chosen as the match.

Once the matched features are obtained, their 3D position in the robot’s coordinate frame is calculated. This information is used together with the current estimation of the robot’s position to place the features in the fixed world coordinate frame.

An overview of the steps taken to find the stereo matches is shown in Figure 6.



3. Position Estimation

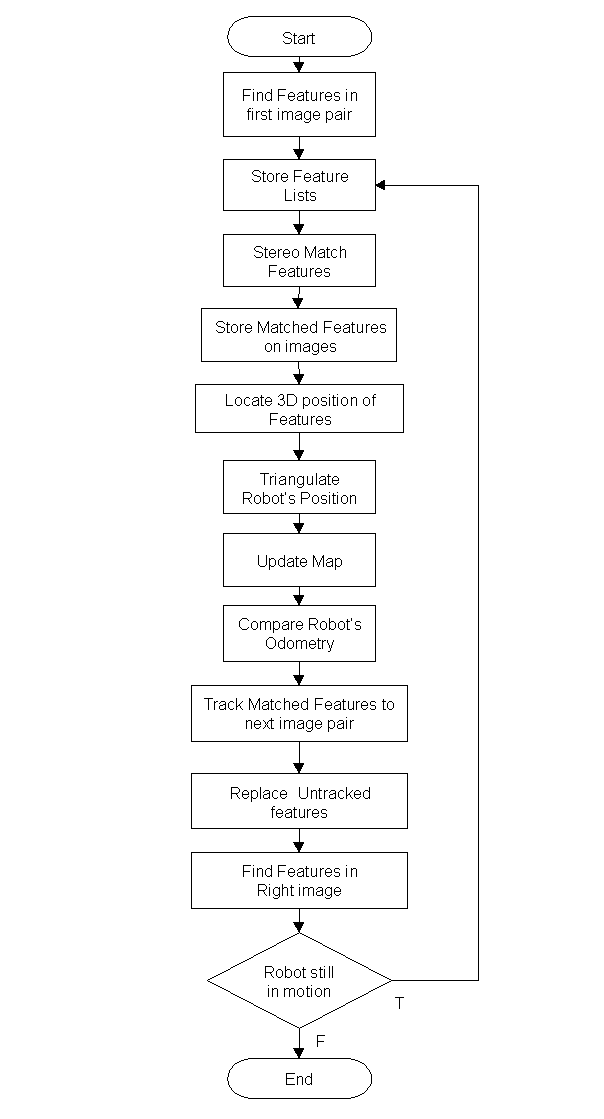

Figure 5. Flow Chart of main algorithm.

Figure 6. Flow chart of algorithm used to stereo match features.

1. Image Capture





The Experiment conducted, consisted of taking stereo images at certain intervals, and then tracks the robot’s movements. The robot was instructed to move forward 100 cms. each time. Measurements were taken (see Table 1), and the robot’s odometry readings noted (see Table 2).

Table 1. Robot’s location experimentally measured in the laboratory.

Location	Location (x,y,z)			dx	dz
0	257.5	0	0
1	257.5	0	100	0.0	100
2	264.0	0	199	6.5	99
3	269.5	0	298	5.5	99
4	275.5	0	400	6.0	102




Table 2. Robot’s location obtained by its own odometry.

Location	q (degrees)	x (cms.)	z (cms.)	dx	dz	Distance to front wall
0	0.00	0	0.1			721.5
1	359.47	7	98.5	7	98.4	623.1
2	359.16	18	196.8	11	98.3	524.8
3	358.80	34	295.0	16	98.2	426.6
4	358.48	59	398.4	25	103.4	323.2




To begin, the images captured are chromatic, but don’t need this much information, so only the blue component con the images is stored. The images are also reduced to one quarter to improve speed in detecting features. The resulting images are achromatic (grey scale) and occupy 384´ 288 pixels, see Figure 7.

Figure 7. Stereo images captured at initial position.

2. Feature Detection





Once the images were stored we attempt to find 25 features in each image. The KLT filter to find features is constrained by the following parameters:



Parameter	Value
mindist	20
window_size	7
min_eigenvalue	1
min_determinant	0.01
min_displacement	0.1
max_iterations	10
max_residue	10
grad_sigma	1
smooth_sigma_fact	0.1
pyramid_sigma_fact	0.9
sequentialMode	FALSE
smoothBeforeSelecting	TRUE
writeInternalImages	FALSE
search_range	15
nSkippedPixels	0




Two images are saved Lfeat0.ppm and Rfeat0.ppm showing all the features detected in each image.



Figure 8. Lfeat0.ppm and Rfeat0.ppm showing the features detected by the KLT algorithm.



Next the features coordinates x_L,y_L and x_R,y_R are converted to camera pixels



u = xscale ´ x

v = yscale ´ y



where xscale and yscale are the ratios of the images height and width respectively.



xscale = 752 ¸ 384

= 1.9583

yscale = 582 ¸ 288

= 2.0208



3. Stereo Match





Then for each feature an epipolar line in the right image is calculated and the nearest features searched in a range given by mindisp=20 and closest to a predicted disparity given by:



where Z was the approximate distance of the features and B the inter-ocular separation of the head, 25.2 cms. (see Figure 4).

After all the matches have been found, a search is done to remove any duplicates, i.e. if two left features are matched to the same right feature.

Now we can calculate the matched features 3D position using the following head parameters:



Fku = 1939.53;

Fkv = 2009.64;

U0 = 752/2;

V0 = 582/2;

Pp = 25.2/2; /* Horizontal offset between pan and elevation axes */

Cc = 4.0; /* Offset between elevation axis and optic axes */

Nn = 7.5; /* Offset along optic axis between vergence axes and optic

centres of cameras */

Ii = 25.2; /* Inter-ocular separation */

Hh =79; /* Height of head centre above the ground */



And the coordinates, changed to the Fixed World Coordinate Frame. With this the position of the robot can be estimated and then the appropriate files are saved (see Figure 9). In file LMatches0.txt the coordinates of each feature are shown as well as the number of the corresponding feature in the right image. Features with no match found are given a value of –1. RMatches0.txt contains the features found in the right image. A value of 1 represents that it has been matched with a left feature, while –1 represents that no match was found.

File RealWorld0.txt contains the 3D coordinates of the matched features, as seen in Figure 11.





































(a) (b)

Figure 9. (a) Contents of file LMatches0.txt . (b) Contents of file RMatches0.txt.



The matched features are also placed on the images and saved in PPM format. Two files are generated; LMatch0.ppm and RMatch0.ppm, see Figure 10. Comparing the image pair in Figure 8 and Figure 10, we see not all features detected were stereo matched.



































Figure 10. Lmatch0.ppm and Rmatch0.ppm showing matched features in each image.































Figure 11. Contents of file RealWordl0.txt



4. Feature Tracking





At this moments we proceed to track the features from the previous left image to the new left image taken at the new location. If some features are not tracked to the next image, the algorithm attempts to find new features to replace them. Then 25 features are searched in the new right image, and the process repeats itself.

At the end, a new file is saved containing the history of the features in the left image, see Figure 12.

































































Figure 12. Feature Table showing the feature history in the left side.



In Figure 12, we see that in frame0 (initial location), 16 features are stereo matched, denoted by their positive values. In frame 1, tracked features are given a value of zero. Only 5 features are tracked from the first image to the second. But since the algorithm searched new features to replace the untracked, in frame 2 we are able to track 8 features. Then only 2 features were tracked to frame 3, and finally only 1 features is tracked to frame 4.



5. Experimental Environment





The laboratory wall in front of the robot during this experiment is shown in Figure 13. The robot was placed approximately at 7 mts. from this wall and then moved toward the wall at 100 cms. intervals. The dimensions of this wall are shown in Figure 14. And Figure 15, shows the coordinates of the principal features. The origin for these coordinates was placed at the bottom-left hand corner of the wall. In Figure 16 the side- wall is shown with its dimensions.



Figure 13. Laboratory wall which the robot faced during this experiment.















Figure 14. Front wall with all dimensions shown in centimeters.

Figure 15. Front Wall with principal feature coordinates shown.

Figure 16. Partial view of the side-wall located to the right of the front wall shown in Figure 13.



6. Results

Table 3. Experimental and Real coordinates of the features matched and found in Figure 15


	Experimental				Real
Feature	x	y	z	x		y		dx		dy
0	210.1712	124.4368	733.8098	210.9		134.0		-0.7		-9.6
2	198.1255	252.3184	707.7735	194.5		259.0		3.6		-6.7
3	213.7301	252.5516	708.869	214.5		259.0		-0.8		-6.4
4	281.4418	190.4332	655.2688	281.5		212.0		-0.1		-21.6
5	277.3173	142.9643	724.0054	277.3		148.0		0.0		-5.0
6	245.7721	169.7695	739.1494	244.0		178.5		1.8		-8.7
8	277.4464	126.1343	720.4741	277.3		138.0		0.1		-11.9
9	264.5356	167.4504	719.7704	264.9		178.5		-0.4		-11.0
11	232.0163	209.9571	753.4997	232.5		217.0		-0.5		-7.0
13	277.4094	185.1026	730.7184	275.3		194.0		2.1		-8.8
14	205.1867	238.3834	710.5756	204.5		241.5		0.7		-3.1
15	354.0995	208.4073	747.6114	356.0		217.0		-1.9		-8.6

In Figure 18, Figure 19, Figure 20, and Figure 21 the 3D position calculated for the matched features are shown for each stage. As can be seen the features appear shifted to the left as the robot progresses. This indicates that the robot has moved in the positive direction of the x-axis, agreeing with the robot’s odometry.

Figure 17. Image sequence of left images captured during the experiment.

Figure 18. Position of the features found and actual position of the features shown in Figure 15 at Location 0.

Figure 19. Position of the features found and actual position of the features shown in Figure 15 at Location 1.

Figure 20. Position of the features found and actual position of the features shown in Figure 15 at Location 2.

Figure 21. Position of the features found and actual position of the features shown in Figure 15 at Location 3.

Figure 22. Features detected and stereo matched at each location. The values used for Z are referenced to the robot’s coordinate frame.

The results of robot localization are as follow:



These values show the robot displacement calculated at the given location.



Table 4. Statistics of Results

As seen in Table 3, the current camera calibration gives a pretty good value for the features, although as the robot gets closer, the error in the height increases. The distance to the features is acceptable, and can be seen in the files RealWorldi.txt and given the robot’s distance to the front wall shown in Table 2. The inaccuracy of the cameras is probably due to the fact that the cameras were not accurately calibrated.

Attempting to re-calibrate the cameras, 16 features in the stereo pair obtained at the starting position were used to try to find the fundamental matrix. The 16 features and their coordinates in camera pixels are shown in Table 5. The 8-point algorithm described in [4] was used generating the 16 ´ 9 matrix shown in Table 6. This matrix M is called the measurement matrix. The equation Mf = 0 was solved where f is the fundamental matrix represented as a 9-vector. The solution was f = 0, which is the trivial solution. And therefore could not be used.

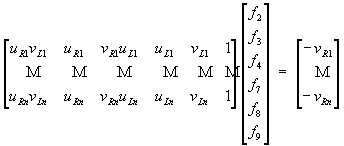

Then a 6-point algorithm was tried, using the value in Table 6 to fill the following equation:



Solving the previous equation gave the following results:



These values are part of the fundamental matrix, denoted as the common elevation fundamental matrix.



In terms of the camera parameters we have:

















where

Table 5. Features used to calibrate cameras.

Table 6. 16 ´ 9 measurement matrix.


uR*uL	uR*vL	uR	vR*uL	vR*vL	vR	uL	vL
27995.0539	70199.1237	142.9559	97350.3829	244111.3920	497.1168	195.8300	491.0544	1
17295.5744	13059.1977	107.7065	20768.0817	15681.1493	129.3312	160.5806	121.2480	1
30710.1906	18282.8768	150.7891	26340.0061	15681.1493	129.3312	203.6632	121.2480	1
128209.6770	89752.3043	328.9944	107101.2506	74975.4953	274.8288	389.7017	272.8080	1
122863.7722	141237.2019	325.0778	168028.3439	193155.8239	444.5760	377.9519	434.4720	1
71329.8634	88327.6645	242.8292	109815.9808	135984.9669	373.8480	293.7450	363.7440	1
122863.7722	156346.2979	325.0778	186358.7087	237144.7147	493.0752	377.9519	480.9504	1
99324.9173	105423.3415	289.8284	128118.6442	135984.9669	373.8480	342.7025	363.7440	1
18361.6874	50301.6552	111.6231	75126.0028	205806.9178	456.7008	164.4972	450.6384	1
55085.0622	55133.5583	211.4964	70527.5823	70589.6738	270.7872	260.4539	260.6832	1
123603.9154	103757.3045	327.0361	124493.7275	104504.2429	329.3904	377.9519	317.2656	1
22932.9346	20578.1297	127.2895	30582.2666	27442.0113	169.7472	180.1636	161.6640	1
307623.4580	138344.3918	530.6993	158135.0123	71116.4624	272.8080	579.6568	260.6832	1
26138.9435	54508.2998	139.0393	76360.6906	159237.1712	406.1808	187.9968	392.0352	1
408006.8184	235825.3667	610.9896	267191.1852	154434.8192	400.1184	667.7803	385.9728	1
13989.8571	37610.4894	93.9984	61955.9998	166563.2081	416.2848	148.8308	400.1184	1



Solving equations (1) we obtain:



And this in turn gives us the following results:



which do are not reliable compared to the previous values used. Fk_u has a value that is too small. And when tested gave incorrect results. But since we are only interested in determining the robot’s position from its starting point, we need only be able to determine the robot’s relative movements from its initial location and not the absolute values. Therefore we can use the current camera calibration since relative measurements are mostly independent of camera calibration. And the current calibration is good enough.

The location of the robot could not be calculated at all locations. The only values obtained are for locations 0 through 2. This was due to the fact that not all tracked features could be stereo matched. The algorithms to track features and stereo match are independent and therefore do not guarantee that all tracked features will be stereo matched. In addition, the tracking algorithm only works with the left images and therefore does not know if the feature is no longer visible in the right image.

The algorithm to stereo match features works pretty good, but as seen in Table 4, the KLT tracking algorithm did not find many features even though through careful examination of the features stored in the images, we can see that more features are still visible but were not tracked. This could be due to a great shift in features location from one set of images to the next. Snapshots taken at smaller intervals could provide better results, since features would shift a smaller distance. And more features tracked would provide a better estimate of the robot’s position. Consequently in Figure 23 only the two first legs of the robots journey is displayed. But approximating the location of the robot by averaging all stereo matched features, gives us the results shown in Figure 24. This is only an approximation that is reasonable since most features found are on the front wall and therefore practically at the same distance from the robot in the z-direction. Thus only paying attention on the z-values, we see in Figure 24, that the movement in such direction is pretty well tracked.

Figure 23. Robot progress as detected by vision and odometry.



Figure 24. Robot progress including manual calculation of all locations



We have shown that robot localization is possible even without calibrated cameras, although camera calibration would definitely improve the results. The localization would also improve if more featured could be tracked from one image to the next. This could be achieved by taking snapshots at smaller intervals.
