1
Trim the jacket of the cable back approximately 1 inch (Caution: Do not damage conductors).
Fan out all four twisted pairs. Note: It is designed for use with solid conductor premise cable.
2

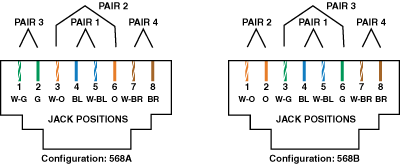

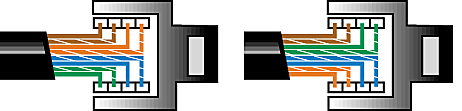

Following the instruction of Color-Coded Wire Positions, lay conductors into the punch down slots. Keep pairs twisted as close to the punch down slots as possible.
3

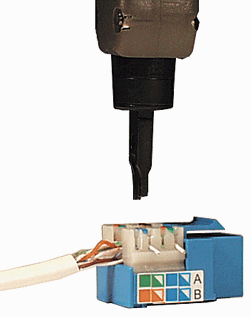

Punch down the conductors with a 110 style punch down tool.
