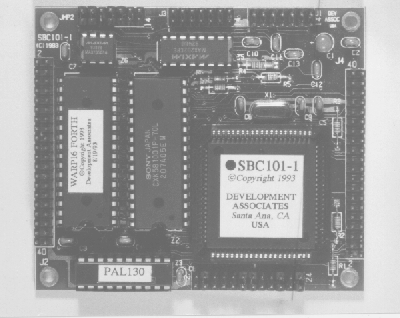

X86(NEC V25) Single Board Computer(SBC)

SBC

FEATURES:

  • 16-BIT Internal Architecture
  • Software Compatible With 80186/188
  • Enhanced Instructions
  • 256 bytes on-chip ram
  • Memory mapped on-chip peripheral hardware(special function registers)
  • Eight analog comparator inputs w/programmable threshold
  • 24 parallel I/O lines
  • Two serial channels
  • Programmable interrupt controller
  • Two dma controller channels
  • Time base counter
  • Two 16-bit timers
  • Built-in clock generator
  • Programmable wait-state generation
  • Two standby modes(Stop & Halt)
  • All CMOS
  • Single 5 volt supply

  • Size: 3.5" x 3" x 0.45"
  • Clock: 10MHz...20MHz
  • Rom/Ram: 16K Rom/32K Ram to 512K Rom/512K Ram

    Software: Forth, Future86, Assembler, C or C++

  • WARP16 Forth
  • Includes TREM(remote terminal software) that enables your PC to communicate with the SBC and its embedded Forth Kernel. Serial communication speeds to 115.2 kBaud.

    WARP16 Forth also includes a Multitasker, Debugger, Decompiler, Assembler and Floating Point.

    Warp16 Forth allows you to create rommable Hex files very easily.


    Future86
