Parameter Files
Parameter Files contain Turnout, Sectional Track and Structure definitions.

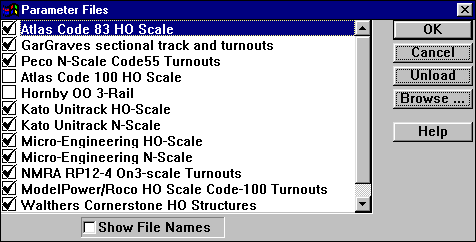

Parameter Files are loaded and unloaded with the Parameter Files dialog.
The dialog contains a list of Parameter Files. Each file is preceded by a
checked box (the file is loaded) or an unchecked box (the file is unloaded).
Definitions in loaded files appear on the Hot Bar (if they are for the current scale).
If you unload a file, then the definitions are removed from the selection lists and the Hot Bar.
You can reload an unloaded file (the Unload button is changed to Reload if you select an unloaded file).
Unloaded files are removed from the list when XTrkCad terminates.
Files can be listed by either their file name or by their Contents Description.
This is controlled by the Show File Names check box.
The Browse button allows you to load other Parameter Files such as provided by other users or by Sillub Technology.
When first installed, all available parameter files are loaded.
You can unload parameter files you don't use to speed up XTrkCad startup time.
The order in this list controls the order of Turnouts and Structures on the Hot Bar.
You can move a Parameter File to the end of the list by Unloading it, and then loading it via the Browse button.
