PB2000 Corner Case


Well I have never actually seen one of these cases, so I am assuming that very few were made.

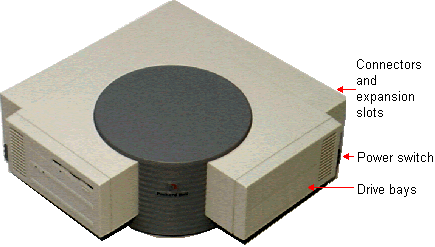

Corner Case (PB2000)

Basic Specifications
Height    6.25" (158 mm)
Width    16.5" (420 mm)
Depth    16.5" (420 mm)
        Click here to download User Manual

Cover Removal Instructions

  1. Grab the gray monitor stand along the top and bottom and pull straight out.
  2. Remove the two screws from along the top of the back panel.
  3. Find the two tabs underneath the front panel.
  4. With your thumbs, press the tabs up and then gently pull the panel from the bottom out and set down.  (Be careful not to pull the LED wires loose from the motherboard.)
  5. Do the same with the side panel as with the front panel.
  6. Lift the cover straight up and off.

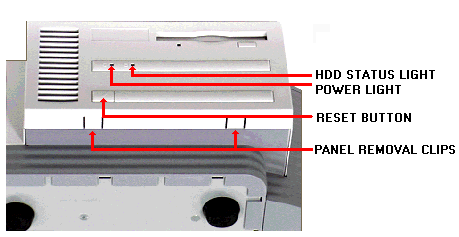

Left view

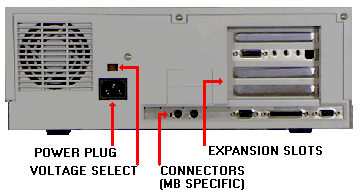

Back View

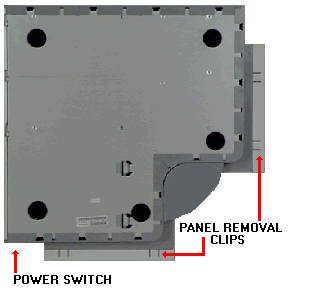

Bottom View
